Arctic Hayes Small Pipe Freeze Kit 8-15mm – ZEK1
The Arctic Hayes Small Pipe Freeze Kit provides a fast way to repair or extend pipework without draining the entire system. Designed for smaller plumbing jobs, the disposable kit creates a temporary frozen section inside the pipe.
Once frozen, the ice plug temporarily stops the water flow. Therefore, installers can carry out suitable repairs or alterations without a complete system drain down.
The ZEK1 kit includes a 150ml Aero Pipe Freezer can and freezing jacket. Furthermore, the complete kit supports a single freeze on 8-15mm horizontal or vertical pipework.
Arctic Hayes uses a non-flammable refrigerant capable of freezing down to -50°C. In addition, the current Aero formulation has a low Global Warming Potential.
Why Choose the Arctic Hayes Small Pipe Freeze Kit?
Avoid Draining the Whole System
Draining and refilling a heating or plumbing system can add significant time to a relatively small repair.
Instead, the Arctic Hayes ZEK1 allows installers to create a temporary ice plug within suitable pipework. Consequently, work can take place without draining the entire system.
Suitable for 8-15mm Pipe
The 150ml Aero kit provides a single freeze on 8-15mm pipework. Therefore, it makes an ideal choice for smaller domestic plumbing and heating jobs.
Horizontal or Vertical Freezing
Pipe orientation does not limit the kit to one type of installation. Instead, installers can use it on suitable horizontal or vertical pipes.
Freezes Down to -50°C
The Aero refrigerant freezes down to -50°C. As a result, it can quickly create the temporary ice plug required for appropriate repair work.
Non-Flammable Refrigerant
Arctic Hayes uses a non-flammable refrigerant in the Aero Pipe Freeze range.
Works with Several Pipe Materials
The ZEK1 works with several common plumbing materials. These include copper, steel, lead, iron and plastic pipe.
Compact Disposable Kit
The small Aero kit particularly suits one-off domestic plumbing tasks. Furthermore, its portable design makes it easy to keep available for repairs and maintenance.
Key Features
- Genuine Arctic Hayes product
- Product code ZEK1
- Small disposable pipe freeze kit
- Suitable for 8-15mm pipes
- Designed for a single freeze
- Suitable for horizontal pipework
- Suitable for vertical pipework
- 150ml Aero Pipe Freezer included
- Freezing jacket included
- Freezes down to -50°C
- Non-flammable refrigerant
- Low Global Warming Potential
- Suitable for copper pipe
- Suitable for steel pipe
- Suitable for lead pipe
- Suitable for iron pipe
- Suitable for plastic pipe
- Helps avoid a full system drain down
- Ideal for smaller plumbing repairs
- Portable and easy to use
Technical Specification
- Manufacturer: Arctic Hayes
- Product: 8-15mm Aero Disposable Freeze Kit
- Product Code: ZEK1
- Can Size: 150ml
- Pipe Size: 8-15mm
- Number of Freezes: Single Freeze
- Pipe Orientation: Horizontal or Vertical
- Minimum Freeze Temperature: Down to -50°C
- Refrigerant: Non-Flammable
- Environmental Feature: Low Global Warming Potential
- Copper Pipe: Suitable
- Steel Pipe: Suitable
- Lead Pipe: Suitable
- Iron Pipe: Suitable
- Plastic Pipe: Suitable
- Application: Domestic Plumbing and Heating Repairs

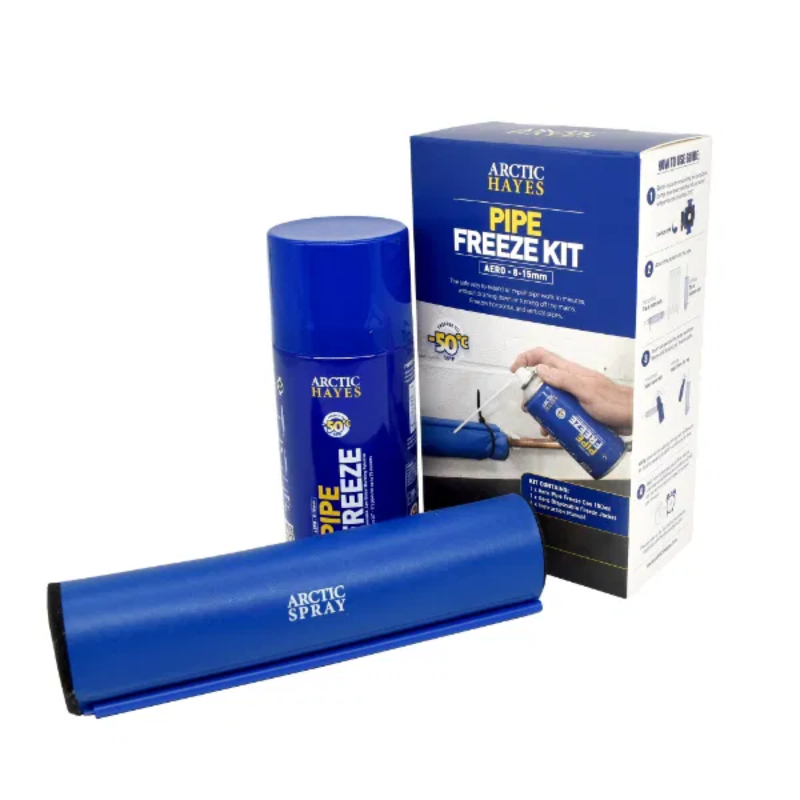

What’s Included in the ZEK1 Pipe Freeze Kit?
The Arctic Hayes catalogue specifies the ZEK1 kit contents as:
- 1 x 150ml Aero Pipe Freeze Can
- 1 x Freeze Jacket
- 2 x Cable Ties
- 1 x Instruction Manual
Therefore, the kit provides the essential components required to carry out a suitable small pipe freeze.
What Is a Pipe Freeze Kit Used For?
A pipe freeze kit creates a temporary ice plug inside water-filled pipework.
The frozen section temporarily prevents water from passing through the pipe. Consequently, installers can work further along the pipe without draining the complete system.
This technique can save considerable time during smaller plumbing and heating repairs.
Arctic Hayes identifies several applications for the ZEK1, including:
- Central heating repairs
- Central heating alterations
- Stopcock installation
- Stopcock repairs
- Service valve installation
- Service valve repairs
- Washing machine plumbing
- Dishwasher plumbing
- Cistern washer replacement
- Shower installation
- Tap installation
- Tap replacement
- Washer replacement
Ideal for Central Heating Repairs
Small central heating repairs can otherwise require a complete drain down.
However, a pipe freeze can isolate a suitable section of water-filled pipe. Therefore, an installer may be able to complete the required alteration without emptying the entire heating system.
This approach proves particularly useful when replacing or installing suitable valves and fittings.
Furthermore, avoiding a complete drain down can reduce the work required to refill and recommission the system afterwards.
Ideal for Stopcocks and Service Valves
Replacing a stopcock or service valve can become difficult when conventional isolation is unavailable.
The Arctic Hayes Small Pipe Freeze Kit provides another option for suitable applications. Firstly, the pipe is frozen at the correct location. The resulting ice plug then temporarily stops water flow.
Consequently, the installer can carry out the required work beyond the frozen section.
Arctic Hayes specifically lists stopcock and service valve installation or repair among the intended uses for the kit.
Suitable for Washing Machine and Dishwasher Plumbing
Installing a new appliance can require alterations to existing water pipework.
For example, an installer may need to add an appliance valve or modify an existing connection.
The ZEK1 provides a convenient solution where suitable 8-15mm pipework needs temporary isolation. Therefore, the installer can make the required alteration without necessarily draining the complete system.
Arctic Hayes specifically includes washing machines and dishwashers among the applications for its Aero Freeze Kit.
Suitable for Tap and Shower Installation
Tap and shower work can also require pipework alterations.
Instead of carrying out a lengthy drain down, installers can use pipe freezing where the system and application allow it.
Arctic Hayes lists shower installation, tap installation, tap replacement and washer replacement among the suitable applications for ZEK1.
As a result, the compact kit provides a useful option for many everyday domestic plumbing jobs.
Suitable for Copper Pipe
Copper remains one of the most common materials in domestic plumbing and heating systems.
The Arctic Hayes ZEK1 works with suitable copper pipe between 8mm and 15mm. Therefore, it provides a practical option for many common domestic pipework repairs.
Furthermore, the kit works on both horizontal and vertical pipes.
Suitable for Plastic and Metal Pipework
The ZEK1 does not limit installers to copper.
Arctic Hayes also lists the following compatible pipe materials:
- Copper
- Steel
- Lead
- Iron
- Plastic
Therefore, the kit offers useful versatility when working across older and newer plumbing systems.
Always follow the Arctic Hayes instructions for the particular pipe material and size.
Single Freeze for 8-15mm Pipes
The 150ml Aero Pipe Freezer supplied with ZEK1 provides enough refrigerant for a single freeze on suitable 8-15mm pipework.
This capacity makes the small kit particularly suitable for:
- One-off repairs
- Small domestic plumbing jobs
- Emergency alterations
- Individual valve replacements
- Appliance installations
- Tap replacements
- Smaller maintenance tasks
For larger pipes or multiple freezes, a larger Arctic Hayes kit provides additional refrigerant and freezing jackets.
Horizontal and Vertical Pipe Freezing
Pipework does not always run conveniently along a horizontal surface.
Fortunately, the Arctic Hayes ZEK1 can freeze suitable horizontal or vertical pipework.
Therefore, installers gain greater flexibility when selecting an appropriate freezing location.
The Arctic Hayes catalogue also highlights the portable nature of the Aero system, making it particularly useful for everyday plumbing work.

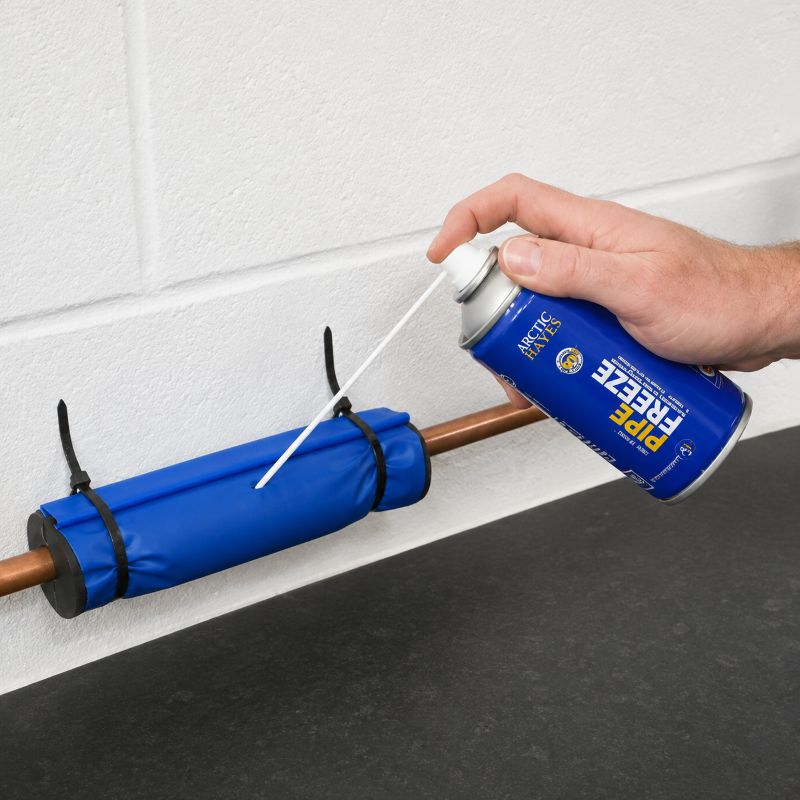

How Does a Pipe Freeze Kit Work?
Pipe freezing uses refrigerant to rapidly lower the temperature of a controlled section of water-filled pipe.
Firstly, the freezing jacket fits around the appropriate section of pipe.
Next, the refrigerant cools the pipe and the water inside it.
As the temperature drops, the water freezes and creates a solid ice plug. This plug temporarily prevents water from flowing through the pipe.
Once the repair is complete, the pipe naturally warms. Consequently, the ice melts and normal water flow returns.
Always follow the supplied Arctic Hayes instructions throughout the freezing process.
Why Freeze a Pipe Instead of Draining Down?
A complete drain down can turn a relatively small repair into a much longer job.
Firstly, the system must be isolated and emptied. Afterwards, the installer needs to refill it and carry out the appropriate checks.
A pipe freeze can avoid much of this work.
Arctic Hayes states that its Aero Freeze Kits can reduce job time by an average of 85%, based on comparison with a two-hour drain-down and refill process.
Therefore, pipe freezing can provide a particularly efficient solution for suitable smaller repairs.
Disposable Pipe Freezing for One-Off Jobs
Professional pipe freezing equipment makes sense for engineers who freeze pipes regularly. However, occasional jobs may not justify a reusable professional kit.
The Arctic Hayes Aero range provides a compact disposable alternative.
ZEK1 is the smallest kit in the range and targets small, single-use plumbing jobs.
Consequently, it suits both professional installers who need a convenient one-off solution and competent users tackling appropriate domestic plumbing work.
Choosing the Correct Arctic Hayes Freeze Kit
The required kit depends on the pipe size and number of freezes.
ZEK1 Small Freeze Kit
The ZEK1 contains a 150ml can and suits a single freeze on 8-15mm pipe.
ZEK2 Larger Freeze Kit
The larger ZEK2 uses a 300ml can. It provides either two 8-15mm freezes or one freeze on 22mm or 28mm pipe.
Therefore, ZEK1 provides the compact choice for a single small-pipe job. In contrast, ZEK2 offers greater capacity for larger or multiple freezes.
Important Pipe Freezing Information
Correct preparation remains essential when freezing any pipe.
Always read and follow the Arctic Hayes instructions before use. Furthermore, make sure the pipe size and material suit the kit.
The ZEK1 is specifically intended for a single freeze on 8-15mm horizontal or vertical pipework.
Do not disturb the frozen section while carrying out the repair. Additionally, ensure the ice plug remains secure until the work is complete.
Ideal Applications
The Arctic Hayes Small Pipe Freeze Kit suits:
- Plumbing repairs
- Central heating repairs
- Central heating alterations
- Stopcock replacement
- Service valve replacement
- Tap installation
- Tap replacement
- Washer replacement
- Shower installation
- Washing machine installation
- Dishwasher installation
- Cistern repairs
- Domestic plumbing
- Property maintenance
- One-off plumbing jobs
- Small pipework alterations
Why Buy the Arctic Hayes Small Pipe Freeze Kit from Kudos Trading?
Kudos Trading supplies professional plumbing, heating and maintenance products to engineers, installers and homeowners throughout the UK.
Furthermore, our extensive range makes it easy to purchase Arctic Hayes pipe freezing products alongside everyday plumbing tools and consumables.
When you order from Kudos Trading, you’ll benefit from:
- Genuine Arctic Hayes products
- Competitive UK prices
- Fast nationwide delivery
- Expert technical support
- Extensive product availability
- Friendly customer service
- Over 25 years of industry experience
Frequently Asked Questions
What is the Arctic Hayes ZEK1 Pipe Freeze Kit?
The ZEK1 is Arctic Hayes’ smallest Aero disposable pipe freezing kit. It allows suitable plumbing repairs without draining the entire system.
What size pipe can the ZEK1 freeze?
The kit suits 8-15mm pipework.
How many freezes can the small Arctic Hayes kit perform?
The 150ml ZEK1 kit is designed for one freeze on 8-15mm pipework.
Can it freeze 15mm copper pipe?
Yes. The ZEK1 suits a single freeze on pipe sizes from 8mm to 15mm, and Arctic Hayes lists copper as a compatible material.
Can the kit freeze plastic pipe?
Yes. Arctic Hayes lists compatible plastic pipe among the materials that its Aero kit can freeze.
What other pipe materials can it freeze?
Arctic Hayes lists copper, steel, lead, iron and plastic pipe.
Can I freeze a vertical pipe?
Yes. The ZEK1 works with suitable horizontal and vertical pipes.
How cold does Arctic Hayes Pipe Freeze get?
The refrigerant can freeze down to -50°C.
Is the refrigerant flammable?
No. Arctic Hayes specifies a non-flammable refrigerant for the Aero Pipe Freeze Kit.
Does the ZEK1 have a low Global Warming Potential?
Yes. Arctic Hayes identifies Low Global Warming Potential as a feature of the current product.
Do I need to drain the heating system first?
The purpose of the kit is to allow suitable repairs without draining down the entire system. The temporary ice plug isolates the relevant section of pipework.
Can I use it when replacing a stopcock?
Yes. Arctic Hayes specifically lists stopcock installation and repair among the intended applications.
Can it be used when installing a washing machine?
Yes. Washing machine and dishwasher plumbing are both listed applications for the Aero Pipe Freeze Kit.
Can it be used when replacing taps?
Yes. Arctic Hayes lists tap installation, replacement and washer replacement among suitable applications.
What comes in the ZEK1 kit?
The current Arctic Hayes catalogue specifies a 150ml Aero Pipe Freeze can, freeze jacket, two cable ties and an instruction manual.
What should I buy if I need to freeze 22mm pipe?
The larger Arctic Hayes ZEK2 supports a single freeze on suitable 22mm or 28mm pipe. It can also provide two freezes on 8-15mm pipework.
