Heatmiser Boost v2 RF Signal Repeater

Designed for Heatmiser Neo and RF Systems

Heatmiser designed the Boost v2 specifically for its wireless heating-control ecosystem.

Verified compatible equipment includes:

• Heatmiser neoHub G2
• Heatmiser neoHub Mini
• Heatmiser UH8-RF v2
• Heatmiser RF Switch v2
• Heatmiser neoAir thermostats
• Heatmiser Slimline-RF thermostats
• Compatible Heatmiser Neo systems

Therefore, it provides a purpose-built way to strengthen communication within compatible Heatmiser installations.

Ideal for Larger Properties

Large homes can place greater distance between thermostats and receivers.

In addition, brickwork, concrete floors and metalwork can reduce wireless performance.

The Boost v2 helps bridge those difficult areas.

Therefore, it can prove useful in:

• Large homes
• Multi-storey properties
• Extensions
• Converted buildings
• Plant rooms
• Outbuildings
• Retrofit heating systems
• Underfloor heating systems
• Zoned heating installations

Extend neoAir Communication

The Heatmiser neoAir range uses wireless communication.

However, a thermostat positioned far from its receiver or hub may experience poor communication.

The Boost v2 can repeat neoAir signals and help them reach compatible Heatmiser equipment.

Therefore, it provides a useful accessory for larger wireless underfloor heating installations.

Browse the Heatmiser NeoAir V3 Thermostat for compatible wireless room control.

Works with the UH8-RF v2

The Heatmiser UH8-RF v2 provides wireless zone control for water underfloor heating.

The Boost v2 can repeat compatible thermostat signals toward the UH8-RF v2 where additional range is required.

As a result, installers can improve wireless coverage without running thermostat cables throughout the property.

See our Heatmiser UH8-RF V2 & NeoAir V3 Wireless Underfloor Heating Control Kit.

Works with the RF Switch v2

The Heatmiser RF Switch v2 provides wireless control for heating and hot water applications.

Where distance weakens communication between the thermostat and receiver, the Boost v2 can repeat the compatible RF signal.

Therefore, it can help create a more reliable connection.

Suitable for Slimline-RF Systems

The Boost v2 also supports the Heatmiser Slimline-RF v3 wireless thermostat range.

Heatmiser states that the optional Boost v2 can extend communication distance by approximately 20 metres.

However, the actual improvement will depend on walls, floors and other obstacles.

Browse Heatmiser Slimline Thermostats.

230V Powered Repeater

The Boost v2 requires a 230V AC mains supply.

Therefore, it does not rely on replaceable batteries.

Heatmiser’s wiring diagram shows Live, Neutral and Earth connections through a suitable 3A protected supply.

Installation should always follow current electrical regulations.

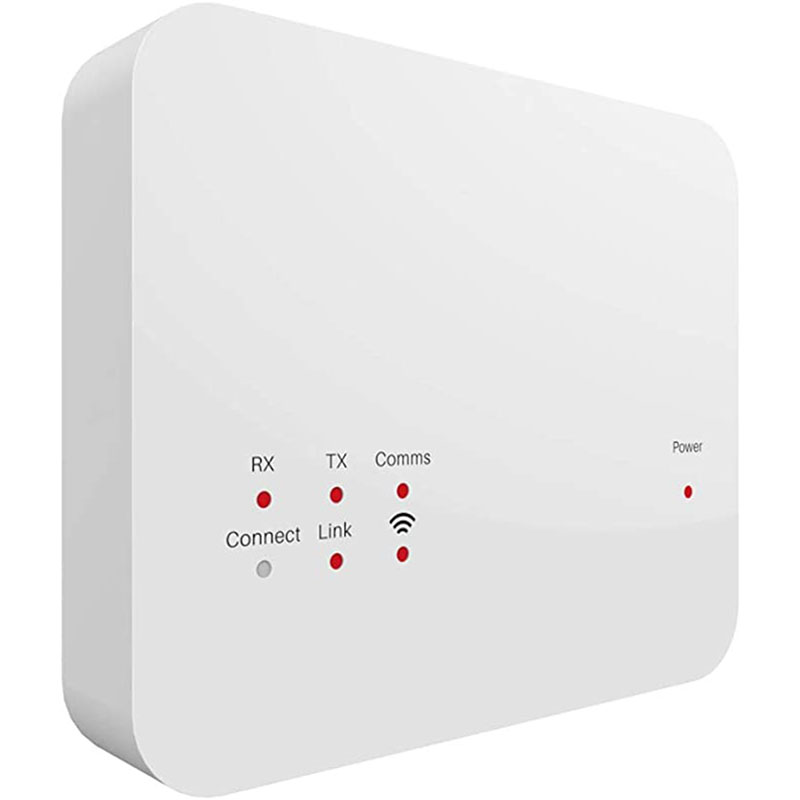

Surface-Mounted Design

The unit uses a compact surface-mounted enclosure.

Its published dimensions are approximately:

• 108mm long
• 90mm high
• 24mm deep

Therefore, installers can position it discreetly while still choosing a suitable location for wireless coverage.

Positioning the Heatmiser Boost v2

Positioning matters when installing any wireless repeater.

Ideally, install the Boost between the devices that have difficulty communicating.

For example, place it between a distant thermostat and its receiver.

However, avoid locating it inside metal cabinets or directly beside equipment that may interfere with wireless signals.

Neo System Operation

When using the Boost v2 with a compatible Neo system, Heatmiser provides specific pairing instructions.

The Boost first joins the Neo system as a repeater.

Devices that need its assistance can then communicate through the extended network.

Therefore, always follow the current Heatmiser pairing procedure for the particular hub and system being installed.

neoHub Mini Operation

The Heatmiser Boost v2 also supports the neoHub Mini system.

In this configuration, it repeats compatible neoAir wireless signals toward the neoHub Mini.

Heatmiser’s instructions provide a separate switch configuration for Mini systems.

Therefore, check the installation manual before commissioning.

RF System Operation

Within a compatible RF system, the Boost detects thermostat signals and repeats them toward the receiver.

Heatmiser states that it does not need individual pairing with the thermostats in this operating mode.

Consequently, installation remains relatively simple once the correct system mode has been selected.

Not a General Wi-Fi Booster

The Heatmiser Boost v2 does not extend your home’s normal internet Wi-Fi network.

Instead, it repeats compatible Heatmiser RF and Neo communication signals.

Therefore, it will not improve laptops, phones, televisions or other standard Wi-Fi devices.

This distinction is important when choosing the correct signal extender.

Alternative to a neoPlug Repeater

Within suitable Neo systems, the Heatmiser neoPlug can also act as a repeater.

However, the Boost v2 provides a dedicated wall-mounted repeater where a smart plug is not required.

In addition, Heatmiser states that the neoPlug does not work as a repeater for the neoHub Mini. The Boost v2 is the appropriate option for that application.

Two-Year Manufacturer Warranty

Heatmiser supplies the Boost v2 with a two-year direct manufacturer warranty.

Therefore, installers and homeowners receive additional reassurance when adding the repeater to a compatible control system.

Key Features

• Genuine Heatmiser control accessory
• Model: Boost v2
• Neo and RF wireless signal repeater
• Extends compatible Heatmiser communication
• Suitable for neoHub G2
• Suitable for neoHub Mini
• Compatible with UH8-RF v2
• Compatible with RF Switch v2
• Supports compatible neoAir thermostats
• Supports Slimline-RF v3
• 230V AC powered
• Surface-mounted installation
• LED indication
• Compact 108 x 90 x 24mm enclosure
• Dedicated heating-control repeater
• Two-year manufacturer warranty

Technical Specifications

Heatmiser’s current product information confirms the 230V supply, surface mounting, dimensions and Neo/RF system compatibility.

Why Use a Heatmiser Signal Repeater?

Wireless systems depend on reliable communication.

However, a property can contain several barriers that weaken the signal.

A dedicated repeater can help where:

• Thermostats intermittently lose communication
• A receiver sits several rooms away
• The system crosses multiple floors
• Thick masonry separates devices
• The plant room sits away from living areas
• An extension increases communication distance

Therefore, the Boost v2 can provide a straightforward solution without replacing the entire control system.

Why Buy From Kudos Trading?

Kudos Trading supplies genuine Heatmiser thermostats, wiring centres, receivers and control accessories throughout the UK.

Our Heatmiser Neo & RF Accessories range includes the Boost v2, RF Switch v2, neoPlug and other compatible controls.

Therefore, installers can source the main components for a Heatmiser wireless system from one supplier.

In addition, we have supplied underfloor heating products to the UK since 2001.

Frequently Asked Questions

What Does the Heatmiser Boost v2 Do?

The Boost v2 receives compatible Heatmiser wireless signals and repeats them.

Therefore, it helps extend communication between thermostats, hubs, wiring centres and receivers.

Is the Heatmiser Boost v2 a Wi-Fi Booster?

No.

It does not extend your normal home Wi-Fi.

Instead, it repeats compatible Heatmiser Neo and RF heating-control signals.

Does the Boost v2 Work with the neoAir v3?

Yes.

The Boost v2 can repeat compatible neoAir signals within supported Heatmiser systems.

Does It Work with the UH8-RF v2?

Yes.

Heatmiser specifically lists the UH8-RF v2 as compatible.

Does It Work with the RF Switch v2?

Yes.

The RF Switch v2 is an officially listed compatible product.

Does It Work with the neoHub Mini?

Yes.

Heatmiser specifically supports the Boost v2 with the neoHub Mini.

Does It Work with Slimline-RF?

Yes.

Heatmiser lists Slimline-RF v3 compatibility.

How Is the Boost v2 Powered?

The Boost v2 requires a 230V AC mains supply.

It is not battery powered and it is not a plug-in adaptor.

How Much Extra Range Does It Provide?

Heatmiser states that the Boost v2 can add approximately 20 metres to communication distance in a compatible wireless thermostat installation.

However, actual range depends on walls, floors and other building materials.

Can I Use More Than One Boost v2?

A larger Heatmiser system can use repeaters where the system design requires additional communication coverage.

Always follow Heatmiser’s current installation and pairing guidance.

Is the Boost v2 Suitable for Underfloor Heating?

Yes.

It works particularly well with compatible Heatmiser wireless underfloor heating controls such as the UH8-RF v2 and neoAir range.

Does the Boost v2 Control the Heating?

No.

The Boost v2 does not switch the heating itself.

Instead, it strengthens communication between compatible Heatmiser control devices.

Does It Need Pairing?

That depends on the Heatmiser system.

For example, the Neo system uses a specific pairing procedure. Meanwhile, compatible RF configurations can repeat signals without individual thermostat pairing.

Always follow the current Heatmiser instructions.

What Warranty Does It Have?

Heatmiser provides a two-year direct manufacturer warranty.
