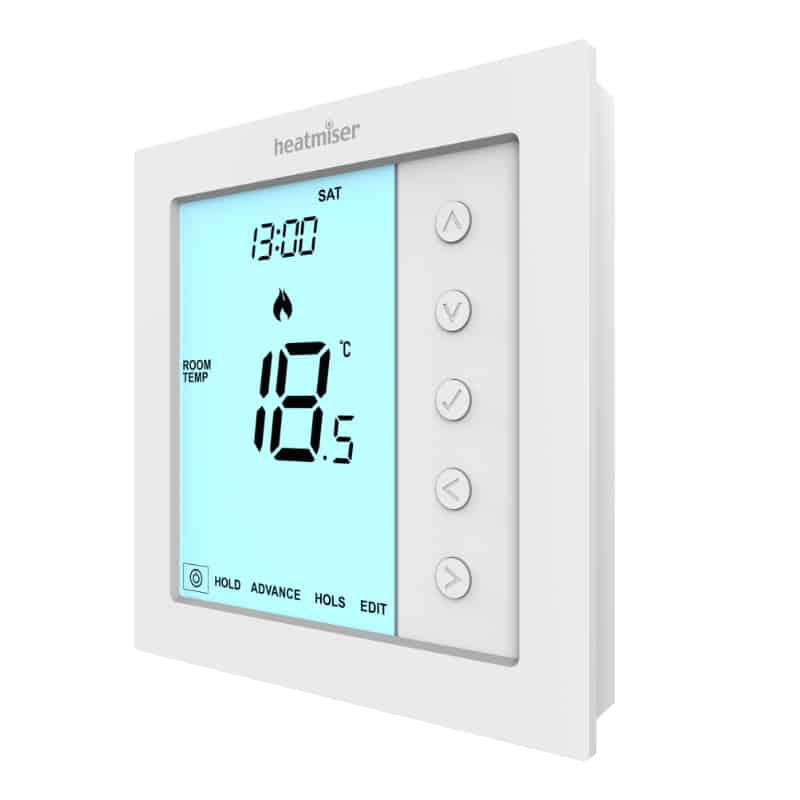

Heatmiser Edge Programmable Room Thermostat
The Heatmiser Edge Programmable Room Thermostat combines flexible heating control with a clean, modern design. It provides a practical upgrade for existing dial thermostats and new heating installations.
The Edge uses a wired 230V connection and supports several programming options. Therefore, users can choose a schedule that matches their property and lifestyle. Available modes include non-programmable, weekday/weekend, 7-day and 24-hour programming.
Furthermore, the thermostat supports optional Heatmiser wireless air sensors. Multiple sensors can work together to calculate an average room temperature, which helps improve comfort in larger or open-plan spaces.
Why Choose the Heatmiser Edge?
Flexible Programming
Choose from several operating modes to suit different heating requirements. For example, the Edge can run as a simple thermostat or follow detailed daily heating schedules.
Self-Learning Optimum Start
The optimum start function calculates how long the room needs to reach the required temperature. As a result, the thermostat can delay heating until the latest practical time.
Wireless Air Sensor Support
Optional Heatmiser wireless air sensors allow temperature measurement away from the thermostat itself. In addition, multiple sensors can provide averaged temperature readings.
Wireless Window and Door Sensor Support
A compatible wireless window or door contact can place the heating into standby when an opening is detected. Once closed, the thermostat can return to normal operation.
Modbus Connectivity
Built-in Modbus support allows integration with compatible home automation and building management systems. Therefore, the Edge also suits more advanced control projects.
Key Locking
PIN-controlled key locking helps prevent unwanted adjustments. This makes the thermostat useful in rented properties, offices and shared spaces.
Key Features
- Genuine Heatmiser thermostat
- Wired 230V operation
- Heating-only control
- Built-in room temperature sensor
- Optional wireless air sensing
- Multiple wireless sensor averaging
- Optional wireless window/door switch
- Modbus connectivity
- Self-learning optimum start
- Non-programmable mode
- 5/2-day programming
- 7-day programming
- 24-hour programming
- 4 or 6 comfort levels
- Temperature hold function
- Holiday mode
- Frost protection
- Advance function
- PIN key locking
- White backlit display
- Celsius or Fahrenheit display
- Flush-mounted design
Technical Specification
- Manufacturer: Heatmiser
- Model: Edge
- Control Type: Wired
- System Type: Heating Only
- Supply: 230V AC
- Maximum Switching Current: 3A
- Temperature Range: 5°C to 35°C
- Programming: Non-Programmable, 5/2 Day, 7 Day and 24 Hour
- Heating Levels: 4 or 6 selectable
- Optimum Start: Yes
- Holiday Function: Yes
- Temperature Hold: Yes
- Key Lock: Yes
- Modbus Connectivity: Yes
- Wireless Air Sensor Support: Yes
- Wireless Window/Door Contact Support: Yes
- Floor Sensor Mode: Yes
- Floor Sensor Included: No
- Dimensions: Approximately 90mm x 90mm x 15mm
- Colour: White
Flexible Heating Schedules
The Heatmiser Edge gives users several ways to control their heating.
Choose non-programmable mode for simple manual temperature adjustment. Alternatively, select weekday/weekend programming for different weekday and weekend schedules.
For greater flexibility, 7-day programming allows individual schedules for each day. Meanwhile, 24-hour mode repeats the same heating programme every day.
The thermostat also supports either four or six comfort levels. Therefore, users can create heating schedules around waking, working, evening and sleeping periods.
Self-Learning Optimum Start
Optimum start helps improve comfort without switching the heating on earlier than necessary.
The thermostat monitors how quickly the room temperature rises. It then calculates the time required to reach the chosen temperature.
Consequently, the Edge can start heating at the latest suitable time while still reaching the target temperature when required.
Wireless Temperature Sensing
The Heatmiser Edge includes a built-in temperature sensor. However, optional wireless air sensors provide greater flexibility.
Available sensing options include:
- Built-in sensor only
- Built-in sensor plus wireless sensor averaging
- Single remote wireless air sensor
- Multiple wireless air sensor averaging
This flexibility makes the Edge particularly useful in larger rooms or areas where the thermostat position does not provide the best temperature reading.
Wireless Window and Door Control
An optional Heatmiser wireless window or door switch can work with the Edge thermostat.
When the contact detects an open window or door, the thermostat can place the heating into standby. Therefore, the system avoids unnecessarily heating the space while external doors or windows remain open.
Once the opening closes, normal heating control resumes.
Modbus Integration
The Heatmiser Edge includes Modbus connectivity for compatible building management and home automation systems.
This feature allows third-party integration where a more advanced heating control solution is required. Furthermore, Heatmiser supports Modbus communication across the Edge thermostat range.
Ideal Applications
The Heatmiser Edge suits:
- Water underfloor heating
- Central heating systems
- New build homes
- Renovation projects
- Home extensions
- Apartments
- Rental properties
- Offices
- Commercial properties
- Multi-zone heating systems
- Heat pump heating systems
- Boiler-fed heating systems
Heatmiser states that the Edge range works with solar, heat pump and most boiler technologies.
Related Products
Heatmiser Wireless Air Sensor
Measure temperature remotely from the thermostat position. Multiple sensors can also provide averaged readings across larger spaces.
Heatmiser Wireless Window/Door Contact
Automatically place the heating into standby when a compatible window or door opens.
Heatmiser UH8 Wiring Centre
Connect multiple wired thermostats and thermal actuators within a zoned water underfloor heating system.
Heatmiser UH4 Wiring Centre
Control smaller multi-zone heating systems with compatible wired Heatmiser thermostats.
Thermal Actuators
Automatically open and close individual underfloor heating manifold circuits according to thermostat demand.
Underfloor Heating Manifolds
Distribute heated water across individual heating zones while allowing accurate system balancing.
Underfloor Heating Pump Packs
Maintain water circulation and suitable flow temperatures through compatible underfloor heating systems.
Why Buy the Heatmiser Edge from Kudos Trading?
Kudos Trading supplies professional heating and underfloor heating products to installers and homeowners throughout the UK.
Furthermore, our extensive range makes it easy to purchase Heatmiser controls alongside manifolds, actuators, wiring centres and other system components.
When you order from Kudos Trading, you’ll benefit from:
- Genuine Heatmiser products
- Competitive UK prices
- Fast nationwide delivery
- Expert technical support
- Extensive product availability
- Friendly customer service
- Over 25 years of industry experience
Frequently Asked Questions
What is the Heatmiser Edge?
The Heatmiser Edge is a wired programmable room thermostat for heating systems. It combines flexible scheduling with optional wireless sensing and Modbus connectivity.
Is the Heatmiser Edge programmable?
Yes. It supports non-programmable, weekday/weekend, 7-day and 24-hour programming modes.
Does the Heatmiser Edge work with underfloor heating?
Yes. It suits compatible water underfloor heating systems and works particularly well with Heatmiser wiring centres and thermal actuators.
Does the Heatmiser Edge need a neutral wire?
The Edge uses a 230V AC supply. Therefore, installation requires the appropriate mains wiring according to the Heatmiser installation instructions.
Can I add a wireless air sensor?
Yes. The Edge supports optional Heatmiser wireless air sensors. Furthermore, several sensors can work together to provide an averaged temperature reading.
Can the Edge detect an open window or door?
Yes. Pair the thermostat with a compatible Heatmiser wireless window or door contact to enable automatic standby behaviour.
Does the Heatmiser Edge have Modbus?
Yes. The thermostat includes Modbus connectivity for compatible building management and home automation systems.
What temperature range does the Edge support?
The adjustable temperature range is 5°C to 35°C.
Does the thermostat have frost protection?
Yes. The Heatmiser Edge includes frost protection.
Does the Heatmiser Edge have a holiday mode?
Yes. The thermostat includes a holiday function for periods when the property is unoccupied.
Can I lock the Heatmiser Edge?
Yes. PIN-controlled key locking helps prevent unauthorised temperature changes.
Does it have optimum start?
Yes. The self-learning optimum start feature calculates when heating should begin to reach the required temperature on time.
Can I control the Heatmiser Edge with an app?
No. The standard Heatmiser Edge does not provide direct app control. It is a wired programmable thermostat with Modbus and optional wireless sensor support.
Is the Heatmiser Edge suitable for electric underfloor heating?
No. Heatmiser lists the standard Edge as not compatible with electric floor heating. A suitable Heatmiser electric floor heating thermostat should be used instead.
