The Heatmiser UH4 wiring centre is a compact and efficient solution for controlling smaller underfloor heating systems. Designed to manage up to four heating zones, it provides reliable wired control for homeowners and installers who prefer a straightforward setup. As a result, it is ideal for projects where simplicity and dependability are essential.
Unlike wireless systems, the Heatmiser UH4 wiring centre uses direct wired connections. Therefore, it offers consistent performance without relying on signal strength. This makes it particularly suitable for properties where wireless interference could be an issue.

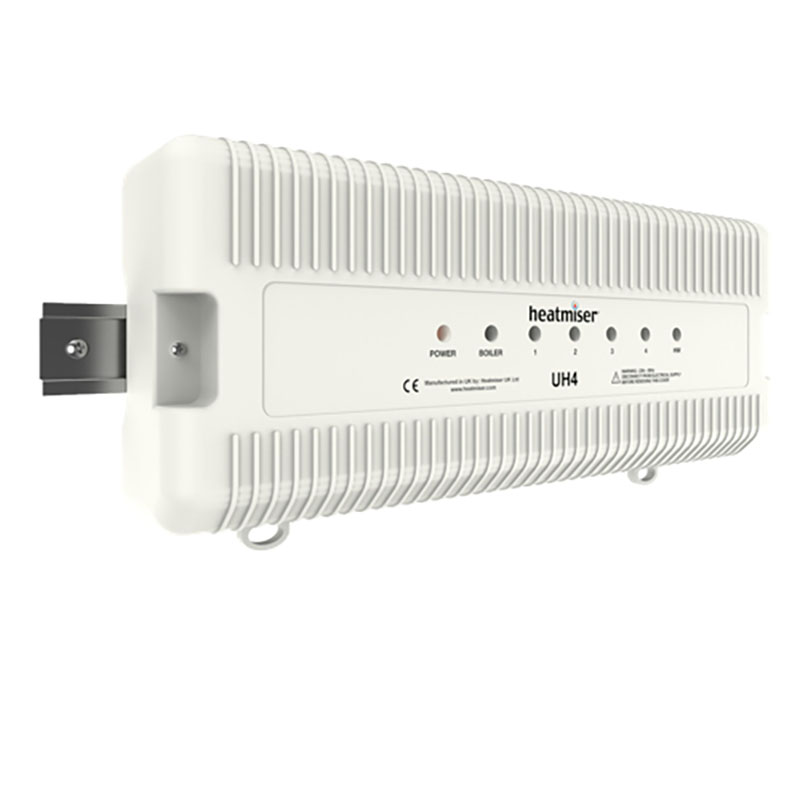

Overview of the Heatmiser UH4 Wiring Centre
The Heatmiser UH4 is designed as a central hub for underfloor heating systems with up to four zones. It connects thermostats, actuators, the boiler, and the pump in one organised unit.
Typically, the wiring centre is installed close to the underfloor heating manifold. Because of this, it allows for a clean and efficient wiring layout. In addition, installers benefit from clearly labelled connections, which speed up installation and reduce errors.
Key Features of the UH4 Wiring Centre
4 Zone Underfloor Heating Control
The Heatmiser UH4 wiring centre supports up to four independent heating zones. Each zone can control multiple actuators, ensuring even heat distribution across different areas.
Moreover, zoning allows users to heat only occupied rooms. As a result, energy efficiency improves while maintaining comfort.
Wired Thermostat Compatibility
This wiring centre is designed to work with Heatmiser wired thermostats. Therefore, it provides stable and uninterrupted communication between the thermostat and the heating system.
In addition, wired connections eliminate the need for batteries or wireless pairing. Consequently, maintenance requirements are reduced.
Boiler and Pump Integration
The Heatmiser UH4 wiring centre includes outputs for controlling the boiler and underfloor heating pump. When a zone calls for heat, the system activates the relevant components automatically.
Furthermore, the unit features a volt-free boiler connection. Because of this, it is compatible with most boiler systems, offering flexibility for different installations.
How the Heatmiser UH4 Works
The system operates through wired thermostats installed in each zone. When the temperature drops below the set level, the thermostat sends a signal directly to the wiring centre.
The Heatmiser UH4 wiring centre then opens the corresponding actuator valves. At the same time, it switches on the boiler and pump if required. As a result, heat is delivered efficiently to the correct zone.
Because everything is hardwired, communication remains stable at all times. Therefore, the system provides dependable performance in both residential and commercial settings.
Benefits of Using the UH4 Wiring Centre
Simple Installation

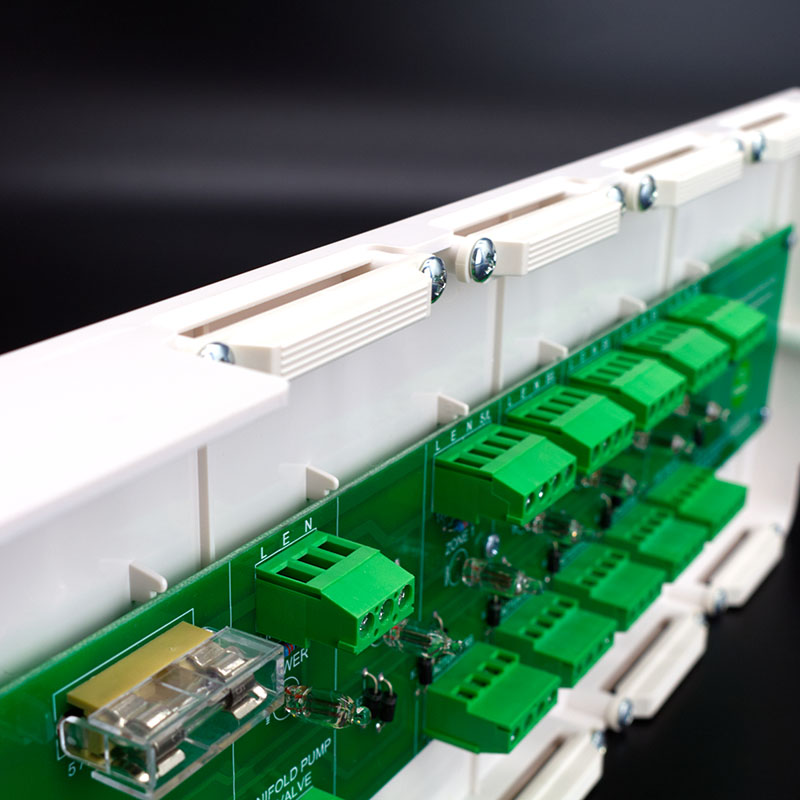

The Heatmiser UH4 wiring centre is designed with installers in mind. Clearly labelled terminals and a logical layout make installation straightforward.
As a result, setup time is reduced, and errors are less likely.
Reliable Wired Connections
Wired systems offer consistent performance without signal dropouts. Therefore, the Heatmiser UH4 is ideal for environments where reliability is critical.
In addition, it avoids potential wireless interference from other devices.
Efficient Zone Heating
By dividing the system into four zones, users can control heating more effectively. Consequently, energy is used only where needed, which helps reduce running costs.
Technical Specifications
- Supports up to 4 heating zones
- Compatible with Heatmiser wired thermostats
- 230V actuator outputs
- Supports multiple actuators per zone
- Includes boiler and pump control
- Features volt-free boiler connection
- Designed for underfloor heating systems
- Compact and easy-to-install design
