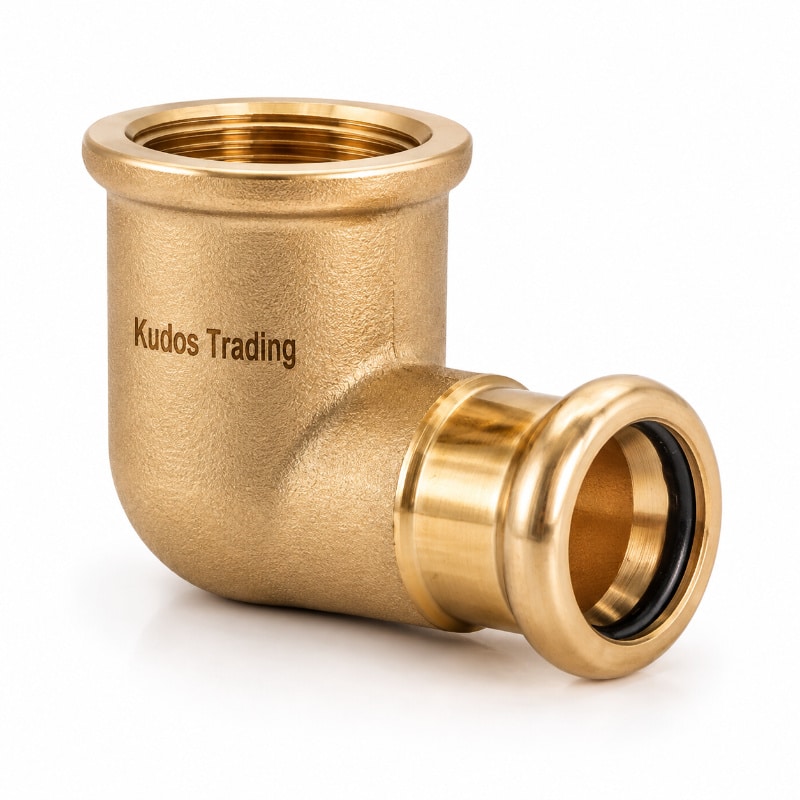

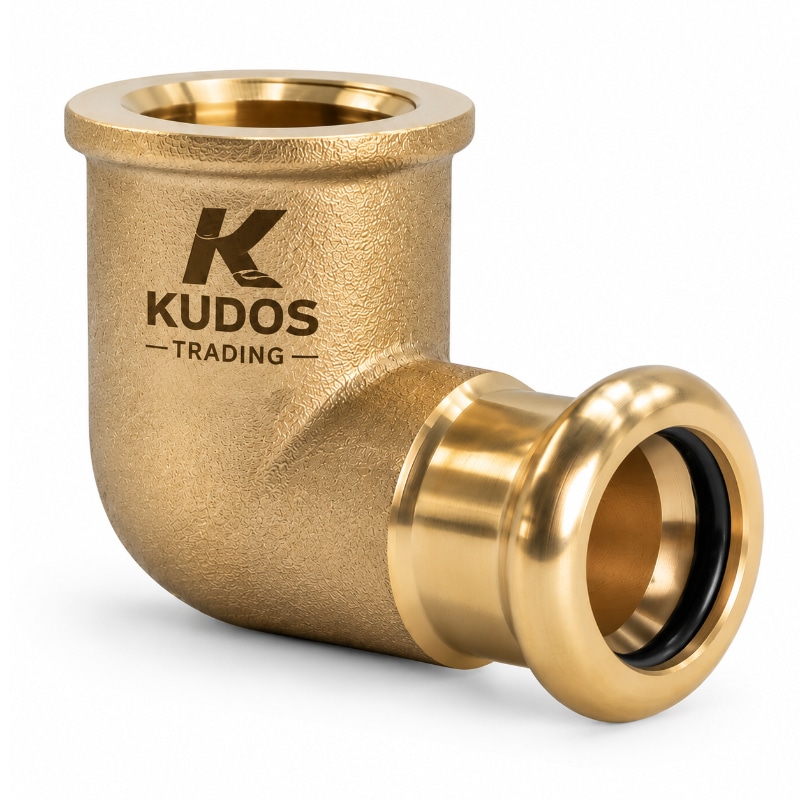

M Press Copper 90° Female Elbow
The M Press Copper 90° Female Elbow combines a copper press connection with a female threaded connection at a 90-degree angle. Therefore, it provides a neat transition between compatible copper pipe and male threaded components.
The press side uses an M profile connection for compatible copper tube. Meanwhile, the female threaded connection allows suitable male threaded valves, components or fittings to connect directly to the elbow.
Its 90-degree design changes the pipe direction while creating the threaded transition within one fitting. Consequently, installers can avoid using a separate elbow and threaded adaptor where this combined fitting suits the installation.
Furthermore, the M Press connection requires no solder, flux or blowtorch. This makes the fitting a practical choice for professional water, plumbing and compatible heating installations.
Why Choose an M Press Copper 90° Female Elbow?
90° Direction Change
The elbow turns the pipe route through 90 degrees. Therefore, installers can create compact changes of direction.
Female Threaded Connection
The threaded side accepts a compatible male threaded fitting or component.
M Profile Press Connection
The copper side uses an M profile press socket. Consequently, compatible copper tube can be mechanically pressed into the fitting.
Two Functions in One Fitting
The elbow changes direction and creates a threaded transition simultaneously.
Therefore, it can reduce the need for additional fittings.
No Soldering Required
The copper connection uses press technology. As a result, installers do not need solder or flux.
No Naked Flame
No blowtorch is required for the press connection. Therefore, the fitting helps reduce traditional hot works.
Key Features
- M Press copper 90° female elbow
- 90-degree direction change
- Female threaded connection
- M profile press connection
- Press x female thread configuration
- Connects copper tube to compatible threaded components
- Compact combined fitting
- Helps reduce additional adaptors
- Suitable for compatible copper tube
- Suitable for water applications
- Suitable for compatible heating systems
- No soldering required on press connection
- No flux required on press connection
- No blowtorch required
- Reduced hot works
- Fast mechanical press connection
- Ideal for new installations
- Useful for refurbishment work
- Suitable for pipework alterations
- Suitable for domestic plumbing
- Suitable for commercial plumbing
- Ideal for plant rooms
- Compatible M profile pressing equipment required
Technical Specification
- Product: M Press Copper 90° Female Elbow
- Product Type: Female Threaded Elbow
- Configuration: M Press x Female Thread
- Angle: 90 Degrees
- Press Profile: M Profile
- Pipe Material: Compatible Copper Tube
- Thread: Female
- Application: Water, Plumbing and Compatible Heating Systems
- Jointing Method: Mechanical Press Connection / Threaded Connection
- Soldering Required: No
- Flux Required: No
- Open Flame Required: No
- Press Tool Required: Yes
- Press Jaw Required: Correct Size M Profile Jaw
Always confirm the exact thread size and type, fitting size, copper tube specification and system compatibility before installation.
What Is an M Press Female Elbow?
An M Press Female Elbow combines two different connection methods within one fitting.
One side contains an M profile press socket for compatible copper tube.
The other side contains a female threaded connection.
Additionally, the fitting changes the pipe direction through 90 degrees.
Therefore, installers can connect copper tube to a compatible male threaded component while turning the pipe route at the same point.
What Is a Female Thread?
A female thread sits inside the fitting.
Therefore, a compatible male threaded component screws into it.
This differs from a male threaded fitting, where the thread appears externally.
Female threaded elbows can provide a useful connection to suitable:
- Valves
- Taps
- Controls
- Heating components
- Plumbing equipment
- Threaded adaptors
- Plant room components
- Other compatible male threaded connections
Always confirm the thread specification before installation.
Why Use a 90° Female Elbow?
A straight female adaptor creates a threaded connection while maintaining the direction of the pipe.
However, many installations need the threaded component positioned at 90 degrees to the incoming copper tube.
A female elbow performs both tasks within one fitting.
Therefore, it can provide:
- 90° direction change
- Female threaded transition
- Compact installation
- Fewer individual fittings
- Fewer press connections
- Neater pipework
- Faster assembly
Female Elbow vs Female Adaptor
Both fittings provide a female threaded connection. However, the pipe direction differs.
M Press Copper Female Elbow
The elbow changes the direction through 90 degrees.
Therefore, it works well where the threaded component needs to sit perpendicular to the incoming copper tube.
M Press Copper Female Adaptor
A straight adaptor maintains the direction of the pipework.
Consequently, it works better when the threaded connection needs to continue in line with the copper tube.
The required pipe layout determines the correct fitting.
Female Elbow vs Male Elbow
The difference lies in the threaded connection.
Female Elbow
A female elbow has an internal thread.
Therefore, it accepts a compatible male threaded connection.
Male Elbow
A male elbow has an external thread.
Consequently, it connects into a compatible female threaded component.
Always check the component being connected before choosing the fitting.
Two Functions in One Compact Fitting
Without a combined elbow, an installer might need to use a standard 90° elbow followed by a separate threaded adaptor.
The M Press Copper Female Elbow combines these functions.
Therefore, the installation can require:
- Fewer components
- Fewer connections
- Less pipework
- Less installation space
- Faster assembly
- Cleaner finished pipework
This becomes particularly useful where installation space remains limited.
Ideal for Connecting Valves
Many plumbing and heating valves use threaded connections.
Therefore, an M Press Female Elbow can provide a convenient transition from copper tube to a compatible male threaded valve.
Furthermore, the 90-degree configuration can help position the valve correctly without adding another elbow.
Always confirm the valve thread and fitting specifications before assembly.
Ideal for Plant Rooms
Plant rooms contain numerous threaded components alongside copper distribution pipework.
Consequently, installers frequently need to transition between press and threaded connections.
The 90° Female Elbow can provide a compact solution around:
- Valves
- Pumps
- Cylinders
- Boilers
- Manifolds
- Heat exchangers
- Control equipment
- Water distribution components
- Heating equipment
Furthermore, its combined design can help keep complex pipework organised.
Copper Press Fittings for Water
M Press technology provides a mechanical method of connecting compatible copper tube.
The installer prepares the copper pipe, inserts it into the press socket and completes the joint using compatible M profile pressing equipment.
Therefore, no heat is required at the press connection.
Typical applications include:
- Hot water pipework
- Cold water pipework
- Water distribution
- Domestic plumbing
- Heating installations
- Plant rooms
- Commercial plumbing
- New build projects
- Refurbishments
- Maintenance work
No Soldering Required
The copper side of the elbow uses an M Press connection.
Therefore, installers do not need:
- Solder
- Flux
- Blowtorch
- Naked flame at the press connection
This provides a convenient mechanical alternative to traditional soldered copper jointing.
Reduced Hot Works
Copper pipework often sits near timber, insulation or finished surfaces.
Therefore, removing the need for a blowtorch at the press connection can provide an important practical advantage.
This makes M Press fittings particularly useful during refurbishment and maintenance work.
Furthermore, installers can create professional copper connections without applying heat to the press joint.
Creating the Threaded Connection
The female side requires a compatible male threaded component.
Firstly, confirm that both connections use the correct thread size and specification.
Next, prepare the threaded joint using a sealing method suitable for the application and component manufacturer’s instructions.
Then, carefully engage the threads.
Avoid cross-threading the connection.
Finally, tighten the threaded joint correctly without placing unnecessary stress on the press fitting or adjoining copper tube.
Avoid Over-Tightening Threaded Connections
Threaded plumbing connections need adequate tightening and sealing.
However, excessive force can damage fittings or components.
Therefore, support the fitting correctly while making the threaded connection.
Use suitable tools and follow the relevant component instructions.
Furthermore, avoid transferring excessive twisting force into an already pressed copper connection.
How to Install an M Press Copper 90° Female Elbow
Firstly, confirm the required press and female thread sizes.
Next, plan the final orientation of the elbow and threaded component.
Cut the compatible copper tube squarely using a suitable pipe cutter.
Then, remove internal and external burrs.
Inspect the copper tube and fitting for damage or contamination.
Mark the required insertion depth where specified.
Push the copper tube fully into the press socket.
Check the insertion mark.
Next, position the correct M profile press jaw around the designated pressing section.
Complete the full pressing cycle.
Connect the compatible male threaded component using the appropriate sealing method.
Finally, inspect the complete assembly before commissioning the system.
Plan the Elbow Orientation
Unlike a straight adaptor, a 90-degree elbow has a fixed direction.
Therefore, installers should plan its orientation carefully before completing the connections.
Check where the threaded component needs to face.
Furthermore, allow enough clearance for the component and installation tools.
Correct positioning helps create neat pipework and prevents unnecessary strain on the finished connection.
Always Deburr Copper Pipe
Freshly cut copper tube can contain sharp internal and external burrs.
Therefore, installers should deburr the pipe before inserting it into the press socket.
Correct preparation helps protect the internal sealing components.
Furthermore, properly prepared copper tube enters the fitting more easily and can reach the required insertion depth.
Mark the Insertion Depth
Correct insertion remains essential when installing copper press fittings.
Therefore, mark the required depth on the pipe where specified.
The mark provides a visual check before pressing.
Furthermore, it helps identify any movement while positioning the press tool.
Use the Correct M Profile Jaw
The press connection requires compatible M profile pressing equipment.
Before pressing, check:
- Fitting size
- Copper tube size
- M press profile
- Correct jaw size
- Press tool compatibility
- Jaw condition
- Pipe insertion depth
- Correct jaw position
- Elbow orientation
Never use an incorrect press profile simply because the jaw appears to fit around the fitting.
Manual or Powered M Press Tool?
A suitable manual M Press tool may provide a practical option where the tool and jaw support the exact fitting size.
Alternatively, compatible powered press equipment can provide faster operation on larger installations.
Therefore, always confirm tool, jaw and fitting compatibility before pressing.
Ideal for Refurbishment Projects
Existing properties often provide limited installation space.
Furthermore, copper pipework may sit close to finished surfaces and existing materials.
The M Press Female Elbow provides a compact threaded transition without requiring soldering at the press connection.
Therefore, it can prove particularly useful during:
- Heating upgrades
- Boiler replacements
- Plumbing alterations
- Bathroom refurbishments
- Kitchen refurbishments
- Plant room modifications
- Property extensions
- Maintenance work
M Press Female Elbows for Commercial Installations
Commercial plumbing and heating systems frequently combine copper pipework with threaded valves and equipment.
Therefore, press-to-thread fittings can play an important role within the installation.
M Press Copper 90° Female Elbows can form part of compatible systems in:
- Hotels
- Apartment developments
- Offices
- Schools
- Retail properties
- Public buildings
- Plant rooms
- Residential developments
- Commercial refurbishments
- Maintenance projects
Furthermore, their combined design can help reduce the number of separate components required.
Complete M Press Copper Fitting System
The M Press Copper 90° Female Elbow forms part of a wider copper press fitting range.
Therefore, installers can combine compatible M Press fittings to create:
- Straight connections
- 45° direction changes
- 90° direction changes
- Pipework crossovers
- Equal branches
- Reduced branches
- Pipe size reductions
- Female threaded transitions
- Male threaded transitions
- Pipe terminations
Using compatible M profile fittings throughout an installation provides a consistent mechanical jointing method.
Why Buy From Kudos Trading?
Kudos Trading supplies professional plumbing, heating and underfloor heating products throughout the UK.
With more than 25 years of relevant industry experience, we understand the requirements of professional plumbers, heating engineers and installers.
Furthermore, our growing M Press copper range makes it easier to source fittings, tools and pipe preparation equipment from one specialist supplier.
Choose Kudos Trading for:
- Extensive M Press copper fitting range
- Professional plumbing and heating products
- Competitive UK pricing
- Fast nationwide delivery
- Practical technical support
- Friendly customer service
- More than 25 years of industry experience
- Support before and after your purchase
Frequently Asked Questions
What is an M Press Copper 90° Female Elbow?
It is a copper fitting with an M profile press connection at one end and a female threaded connection at 90 degrees.
What is the female thread used for?
It accepts a compatible male threaded valve, fitting or component.
Does the fitting change the pipe direction?
Yes. The elbow creates a 90-degree change of direction.
What is the difference between a female elbow and female adaptor?
A female elbow changes the connection direction through 90 degrees. A straight female adaptor keeps the connection in line with the copper pipe.
What is the difference between a female and male elbow?
A female elbow has an internal thread. A male elbow has an external thread.
What press profile does the fitting use?
The copper connection requires compatible M profile pressing equipment.
Does the press connection require soldering?
No. Mechanical pressing completes the copper connection.
Do I need a blowtorch?
No. The press connection does not require a naked flame.
Does the threaded connection need sealing?
Use a suitable thread sealing method where required by the fitting, system and connected component specifications.
Can I connect a valve to the female thread?
Yes, provided the valve has a compatible male thread of the correct size and specification.
Is it suitable for water pipework?
Yes. It is intended for compatible copper water and plumbing applications.
Can it be used on heating systems?
Yes, where the fitting and complete system specification permit the intended water-based heating application.
Why use a female elbow instead of an elbow and separate adaptor?
The combined fitting can reduce the number of components and connections while creating a more compact installation.
Do I need to deburr the copper pipe?
Yes. Correct pipe preparation helps protect the internal sealing components.
Should I mark the insertion depth?
Yes, where specified. The mark provides a useful visual check before pressing.
Can I use a U profile jaw?
No. Use the specified compatible M profile equipment.
Can I use a manual M Press tool?
Yes, provided the tool and jaw support the exact fitting size.
Can I use a powered press tool?
Yes, provided the press tool and M profile jaw are compatible.
Should I support the fitting when tightening the threaded connection?
Yes. Correct support helps prevent unnecessary twisting forces from transferring into the copper pipework.
Is the female elbow useful in plant rooms?
Yes. It provides a compact transition between copper pipe and compatible male threaded components.
Related Products
- M Press Copper Male Elbows
- M Press Copper Female Adaptors
- M Press Copper Male Adaptors
- M Press Copper 90° Elbows
- M Press Copper 90° Street Elbows
- M Press Copper 45° Elbows
- M Press Copper Equal Tees
- M Press Copper Reducing Tees
- M Press Copper Reducing Couplers
- M Press Copper Fitting Reducers
- M Press Copper Straight Couplers
- M Press Copper End Stops
- Manual M Press Tool
- M Profile Press Jaws
- Copper Pipe Cutters
- Pipe Reamers & Deburring Tools
Next Working Day Delivery: Yes, we hold all our products in stock at our 7000 sq ft Nottingham warehouse and at our 3000 sq ft warehouse in Market Harborough and use DPD for a tracked next-day delivery.
Collection Available: You can always collect from our Norttinagham location and help yourself to a free tea and coffee
