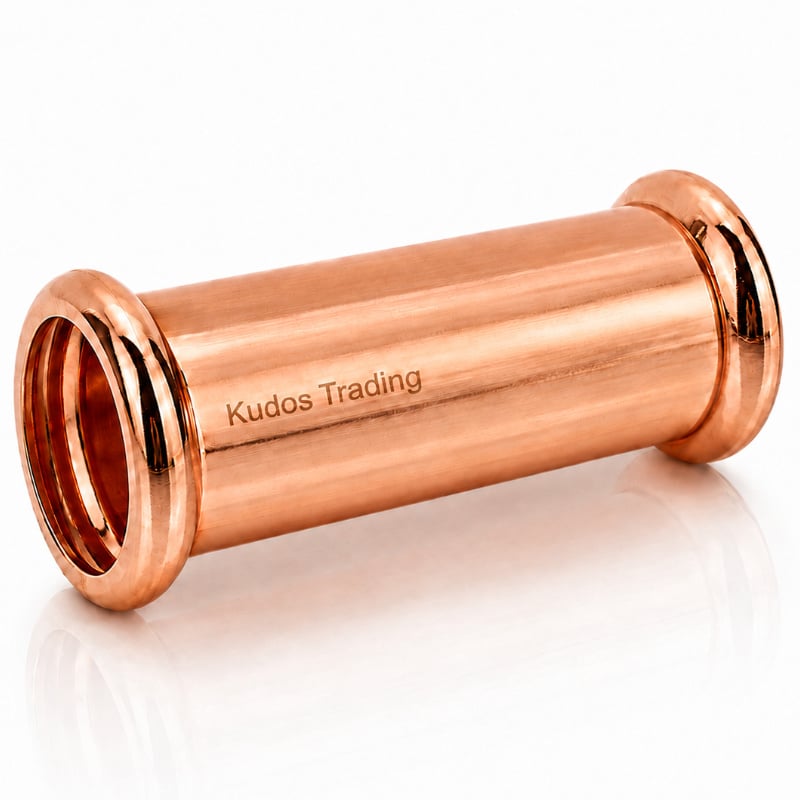

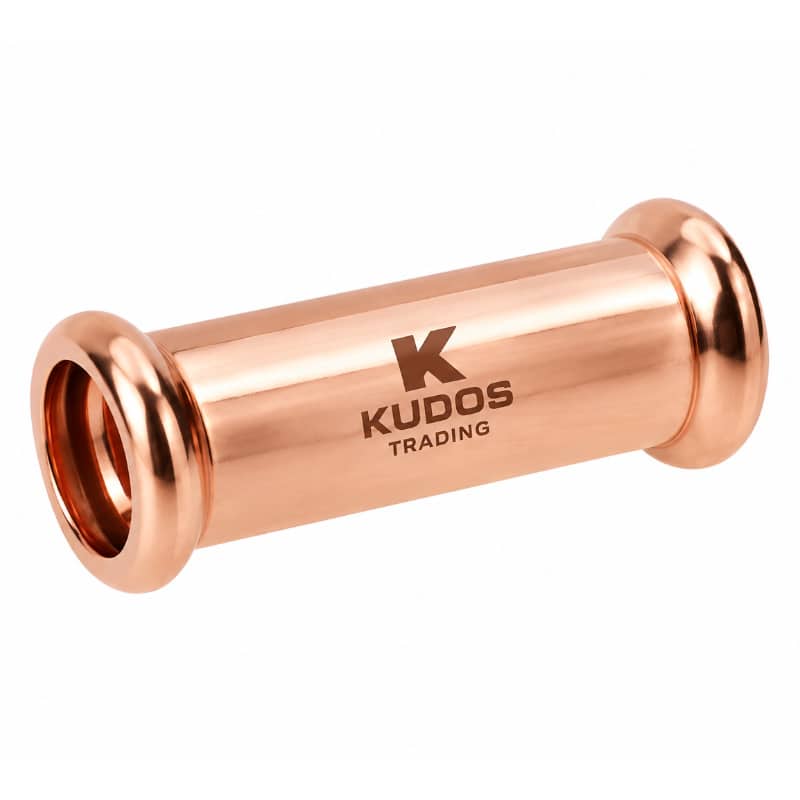

M Press Copper Sleeve Coupling
The M Press Copper Sleeve Coupling provides a fast way to join or repair compatible copper pipework. Unlike a standard straight coupler, the sleeve design allows the fitting to slide along the pipe during installation. Therefore, it is particularly useful when repairing existing copper pipework.
Designed for M profile press systems, the coupling creates secure connections without soldering or a naked flame. Installers simply prepare the copper tube, position the sleeve and complete each connection with a compatible press tool.
The absence of an internal pipe stop gives installers greater flexibility when replacing a damaged section of copper tube. As a result, the coupling can slide completely onto one pipe before moving back across the second pipe.
Furthermore, M Press technology reduces traditional hot works. This makes the sleeve coupling ideal for domestic and commercial water and heating installations.
Why Choose an M Press Copper Sleeve Coupling?
Ideal for Copper Pipe Repairs
The sleeve coupling works particularly well when replacing damaged sections of existing copper pipe. Its slip-through design allows easier positioning where pipe movement remains limited.
No Internal Pipe Stop
Unlike a standard straight coupler, the sleeve allows copper tube to pass through the fitting. Therefore, installers can slide it completely onto one pipe during a repair.
Fast Installation
Press technology creates each connection quickly. Consequently, installers can complete repairs and alterations without preparing a traditional soldered joint.
No Soldering Required
The fitting uses a mechanical press connection. Therefore, there is no need for solder, flux or a blowtorch.
M Profile Connection
The sleeve coupling uses the M press profile. Always select a compatible press tool and correctly sized M profile jaw.
Suitable for Water and Heating
The coupling provides a professional connection for compatible copper pipework across suitable plumbing, water and heating applications.
Key Features
- M Press copper sleeve coupling
- Slip coupling design
- No internal pipe stop
- Allows pipe to pass through the fitting
- Ideal for copper pipe repairs
- Useful for pipework alterations
- Joins compatible copper tube
- M profile press connections
- Suitable for water applications
- Suitable for compatible heating systems
- No soldering required
- No blowtorch required
- No flux required
- Reduced hot works
- Fast installation
- Clean mechanical jointing
- Two press connections
- Professional finish
- Suitable for domestic installations
- Suitable for commercial installations
- Compatible press tool required
- Correct M profile jaw required
Technical Specification
- Product: M Press Copper Sleeve Coupling
- Product Type: Straight Slip / Repair Coupling
- Connection Type: Press x Press
- Internal Pipe Stop: No
- Pipe Through-Fitting: Yes
- Press Profile: M Profile
- Pipe Material: Compatible Copper Tube
- Application: Water, Plumbing and Compatible Heating Systems
- Primary Use: Joining and Repairing Copper Pipe
- Jointing Method: Mechanical Press
- Soldering Required: No
- Open Flame Required: No
- Press Tool Required: Yes
- Press Jaw: Correct Size M Profile Jaw
Always check fitting size, copper tube specification and system compatibility before installation.
What Is an M Press Copper Sleeve Coupling?
An M Press Copper Sleeve Coupling connects two compatible copper pipes in a straight line.
However, it differs from a conventional straight coupler because the sleeve does not use a central pipe stop.
Therefore, copper tube can pass further through the fitting.
This small design difference makes the sleeve particularly useful when repairing existing copper pipework.
For example, an installer can slide the complete coupling onto one pipe. After positioning the replacement pipe, the coupling can slide back across the joint.
Finally, both sides are pressed to create permanent connections.
Sleeve Coupling vs Straight Coupler
Both fittings join two copper pipes of the same diameter. However, their internal construction gives them different installation advantages.
M Press Straight Coupler
A standard straight coupler normally includes an internal stop. This helps position each copper pipe at the correct depth.
Therefore, it works particularly well when connecting new pipework during normal installation.
M Press Sleeve Coupling
A sleeve coupling has no central pipe stop.
Consequently, the fitting can slide along compatible copper tube.
This makes it particularly useful for:
- Copper pipe repairs
- Replacing damaged pipe
- Existing installations
- Restricted-access repairs
- Pipework alterations
- Situations with limited pipe movement
Ideal for Copper Pipe Repairs
Repair work represents one of the main applications for a sleeve coupling.
Imagine a damaged section of copper pipe between two fixed points. A conventional stopped coupler can prove difficult to install because the pipes cannot move apart sufficiently.
A sleeve coupling solves this problem.
Firstly, remove the damaged pipe section. Next, slide a sleeve coupling completely onto each existing pipe where required.
Position the replacement copper tube between the existing pipes.
Then, slide each coupling back until it correctly bridges the connection.
Finally, press the fittings using the appropriate M profile jaw.
As a result, installers can replace a damaged section without needing excessive pipe movement.
Why No Internal Stop Matters
A standard coupler uses an internal stop to prevent the pipe from travelling too far into the fitting.
Normally, this provides a useful installation reference.
However, repair work sometimes requires the fitting to slide beyond its final position.
The M Press Copper Sleeve Coupling allows this movement because it has no central stop.
Therefore, installers gain the flexibility needed to position replacement pipe between existing fixed sections.
Once everything aligns correctly, the coupling moves back into its final position before pressing.
Copper Press Fittings for Water
Copper remains widely used throughout domestic and commercial plumbing.
M Press technology allows installers to join compatible copper tube without traditional soldering.
Typical sleeve coupling applications include:
- Hot water pipework
- Cold water pipework
- Domestic plumbing
- Water distribution
- Heating systems
- Plant rooms
- Copper pipe repairs
- Property renovations
- Commercial plumbing
- Pipework alterations
- Maintenance work
Therefore, installers can use familiar copper tube while gaining the advantages of modern press technology.
No Hot Works Required
M Press fittings create mechanical connections without heating the joint.
Consequently, installers do not need a naked flame.
This provides a significant advantage when repairing copper pipe near:
- Timber
- Floor joists
- Kitchen units
- Bathroom furniture
- Insulation
- Finished walls
- Flooring
- Roof spaces
- Confined areas
- Existing decorations
Furthermore, reducing hot works can simplify installation procedures on many commercial sites.
Ideal for Restricted Spaces
Existing copper pipework often sits in awkward locations.
There may be little room to move the pipes or safely use a blowtorch.
A sleeve coupling provides additional installation flexibility because it can slide along the pipe.
Furthermore, press technology eliminates the need to heat the fitting.
Therefore, the combination works particularly well for accessible repairs in restricted installation areas.
How to Install an M Press Copper Sleeve Coupling
Correct installation starts with careful pipe preparation.
Firstly, isolate and drain the relevant pipework.
Cut the copper tube squarely using a suitable pipe cutter.
Next, remove internal and external burrs from each cut end.
Check that the pipe remains clean, round and free from damage.
Because the sleeve has no central stop, carefully mark its final position on the copper tube.
Slide the coupling onto the first pipe.
Position the adjoining or replacement pipe correctly.
Next, slide the coupling back across the joint until both pipes reach the required insertion position.
Check the marks carefully.
Finally, use the correct M profile press jaw to press both ends of the fitting.
Always follow the fitting manufacturer’s installation instructions.
Marking the Pipe Is Particularly Important
Insertion marks matter with all press fittings. However, they become especially important when using a sleeve coupling.
Because there is no internal stop, the fitting does not automatically centre itself between the two pipes.
Therefore, installers need clear reference marks.
Correct marking helps confirm:
- Both pipes enter sufficiently
- The coupling sits centrally
- The fitting has not moved
- Both press zones cover the pipe correctly
- The final position remains correct before pressing
Once pressed, the connections become permanent.
Always Deburr Copper Pipe
Freshly cut copper can have sharp internal and external edges.
Therefore, always deburr the tube before sliding it through the coupling.
Correct preparation helps protect the internal sealing elements.
Furthermore, removing burrs allows the sleeve to move smoothly along the copper pipe during positioning.
Use a suitable pipe reamer or deburring tool before assembly.
Protect the Internal Seals
M Press Copper Sleeve Couplings contain sealing elements that play an essential role in the completed connection.
Therefore, avoid damaging them during pipe insertion.
A sharp or poorly prepared pipe end can potentially catch the seal as the sleeve moves along the tube.
For this reason:
- Cut the pipe square
- Remove all burrs
- Check for sharp edges
- Inspect the pipe surface
- Keep the pipe clean
- Insert the pipe carefully
Correct preparation helps create a dependable press connection.
Two Press Connections Per Sleeve
The sleeve coupling creates a connection at both ends.
Therefore, installers must complete two separate presses.
Before pressing either side, check that the coupling sits in its correct final position.
Then, position the appropriate M profile jaw over the first press section and complete the cycle.
Repeat the process at the opposite end.
Finally, visually inspect both completed connections.
Use the Correct M Profile Jaw
These copper sleeve couplings require the correct M profile press jaw.
Before making a connection, confirm:
- Copper pipe size
- Fitting size
- M press profile
- Press jaw size
- Press tool compatibility
- Jaw condition
- Correct fitting position
- Correct jaw positioning
Never use a different jaw profile simply because it appears to fit around the coupling.
M Press Sleeve Coupling for Pipe Alterations
Not every application involves repairing damaged pipe.
Sleeve couplings can also prove useful during alterations to existing copper systems.
For example, installers may need to replace or modify a section of pipe between two fixed points.
Because the coupling can slide along the copper tube, it provides greater installation freedom.
Therefore, it works particularly well during refurbishment and maintenance projects.
M Press Sleeve Coupling for Commercial Repairs
Commercial buildings often contain extensive copper pipe installations.
When a damaged section requires replacement, minimising downtime can become important.
M Press Sleeve Couplings allow installers to create fast mechanical connections without soldering.
Therefore, they provide a useful repair option across suitable:
- Hotels
- Offices
- Schools
- Apartment buildings
- Retail properties
- Plant rooms
- Public buildings
- Commercial properties
- Residential developments
- Maintenance installations
Sleeve Coupling vs Solder Repair Coupler
Both fitting types can repair suitable copper pipework.
However, the installation methods differ.
M Press Sleeve Coupling
The M Press version provides:
- Mechanical press connections
- No naked flame
- No solder
- No flux
- Sliding fitting design
- Fast installation
- Reduced hot works
- Consistent pressing
Solder Sleeve Coupling
Traditional copper repair couplers use heat and solder.
These fittings remain widely used. However, the installer needs appropriate hot-work access around the complete joint.
Therefore, an M Press Sleeve Coupling provides an attractive alternative where fast, flame-free installation matters.
Complete M Press Copper Fitting Range
Sleeve couplings form part of our wider M Press Copper Fittings range.
Depending on your installation, related fittings can include:
- Straight couplers
- Sleeve couplings
- End stops
- Elbows
- Tees
- Reducing couplers
- Reducing tees
- Male adaptors
- Female adaptors
- Other copper press fittings
Consequently, installers can complete new pipework, repairs and alterations using the same M profile press system.
Ideal for Professional Plumbers
The M Press Copper Sleeve Coupling provides a useful addition to any professional press fitting kit.
Its sliding design solves installation problems that a standard stopped coupler cannot always overcome.
Therefore, it suits:
- Professional plumbers
- Heating engineers
- Mechanical contractors
- Maintenance engineers
- Plumbing contractors
- Facilities teams
- Building contractors
- Commercial installers
- Domestic installers
- Property maintenance companies
Keeping common sleeve coupling sizes available can also help installers deal quickly with unexpected copper pipe repairs.
Why Buy M Press Copper Sleeve Couplings from Kudos Trading?
Kudos Trading supplies professional copper press fittings, plumbing products and installation tools to tradespeople throughout the UK.
Furthermore, our expanding M Press Copper Fittings range allows installers to purchase sleeve couplings alongside straight couplers, end stops, elbows, tees, adaptors, press tools and M profile jaws.
When you order from Kudos Trading, you’ll benefit from:
- Professional M Press copper fittings
- Extensive fitting range
- Competitive UK prices
- Fast nationwide delivery
- Expert technical support
- Extensive stock availability
- Friendly customer service
- Over 25 years of plumbing and heating experience
Frequently Asked Questions
What is an M Press Copper Sleeve Coupling?
An M Press Copper Sleeve Coupling joins two compatible copper pipes using M profile press connections. Its internal design allows the fitting to slide along the pipe.
Is a sleeve coupling the same as a straight coupler?
Not exactly. Both join equal-sized pipes, but a standard straight coupler normally includes a central pipe stop. A sleeve coupling does not.
Is a sleeve coupling the same as a slip coupler?
The terms sleeve coupling, slip coupling and repair coupling commonly describe fittings that allow pipe to pass through rather than stopping centrally.
Why doesn’t a sleeve coupling have a pipe stop?
Removing the internal stop allows the fitting to slide completely onto a pipe. Therefore, installers can position replacement pipe between fixed sections.
Is it suitable for copper pipe repairs?
Yes. Repairing existing copper pipework represents one of the main applications for a sleeve coupling.
Can I use it to replace a damaged section of copper pipe?
Yes. The sliding design makes it particularly useful when installing a replacement pipe section between two existing fixed points.
What press profile does the fitting use?
The coupling requires a compatible M profile press jaw.
Does the fitting require soldering?
No. A compatible press tool creates the connection mechanically.
Do I need a blowtorch?
No. M Press fittings provide a flame-free jointing method.
Is the sleeve coupling suitable for water?
Yes. It suits compatible copper water and plumbing applications.
Can I use it on heating pipework?
It can suit compatible water-based heating installations where the fitting specification permits.
Do both ends require pressing?
Yes. The coupling contains two press connections. Therefore, installers must correctly press both ends.
Why should I mark the copper pipe?
A sleeve coupling has no central stop. Therefore, insertion marks help ensure both pipes sit correctly inside the fitting before pressing.
Do I need to deburr the pipe?
Yes. Proper deburring helps protect the internal seals and allows the coupling to slide smoothly along the copper tube.
Can I use a U profile jaw?
No. These fittings require the specified M profile jaw.
Can the fitting move after pressing?
No. Once correctly pressed, the coupling creates permanent mechanical connections.
Are sleeve couplings useful for maintenance engineers?
Yes. Their sliding design makes them particularly useful for repairs and alterations to existing copper pipework.
Should plumbers keep sleeve couplings in their press fitting kit?
Yes. Common sizes can provide a quick solution when damaged copper pipe needs replacing between fixed points.
Related Products
- M Press Copper Straight Couplers
- M Press Copper End Stops
- M Press Copper Sleeve Couplings
- M Press Copper Elbows
- M Press Copper Tees
- M Press Copper Reducers
- M Press Copper Male Adaptors
- M Press Copper Female Adaptors
- M Press Copper Fittings
- M Press Tool
- M Profile Press Jaws
- Copper Pipe Cutters
- Pipe Reamers & Deburring Tools
- Plumbing & Heating Tools
Next Working Day Delivery: Yes, we hold all our products in stock at our 7000 sq ft Nottingham warehouse and at our 3000 sq ft warehouse in Market Harborough and use DPD for a tracked next-day delivery.
Collection Available: You can always collect from our Norttinagham location and help yourself to a free tea and coffee
