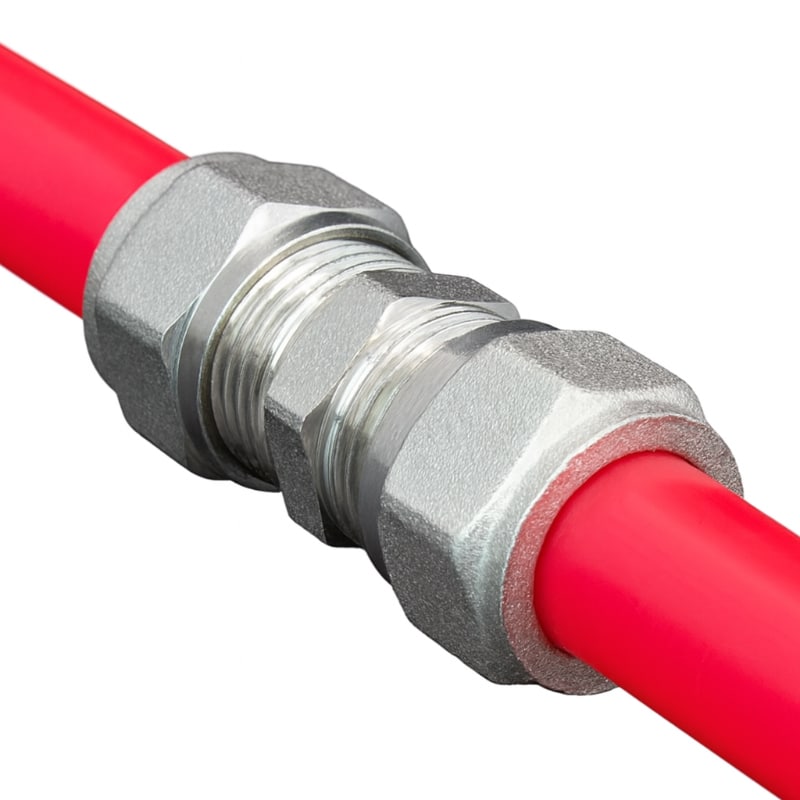

Underfloor Heating Pipe Repair Coupler

An Underfloor Heating Pipe Repair Coupler provides a reliable way to join compatible underfloor heating pipe. It is particularly useful when pipe becomes damaged during installation or subsequent building work.

Ideally, each underfloor heating circuit should contain one continuous pipe length between the manifold connections. However, accidents can happen. A screw, drill or cutting tool can damage pipe after installation.

Instead of replacing the entire heating loop, installers can remove the damaged section and fit a suitable repair coupler. Therefore, a relatively small repair can save considerable time, pipe and disruption.

The compact fitting also works well when installers need to join compatible pipe during an approved repair or alteration.

Why Choose an Underfloor Heating Pipe Repair Coupler?

Repair Damaged UFH Pipe

Accidental pipe damage does not always mean replacing the complete circuit. Instead, a correctly installed repair coupler can reconnect the damaged pipe.

Saves Time and Disruption

Replacing an entire underfloor heating loop can involve lifting flooring and disturbing large areas. Therefore, repairing the affected section can provide a much more practical solution.

Creates a Secure Connection

The coupler mechanically connects two correctly prepared pipe ends. Consequently, installers can create a strong and dependable repair when they follow the correct installation procedure.

Compact Design

Underfloor heating repairs often need to fit within a limited floor depth. The compact coupler helps keep the repaired area neat and manageable.

Useful Installation Spare

Keeping repair couplers available on site makes sense when installing underfloor heating. As a result, accidental pipe damage does not necessarily bring the entire installation to a halt.

Key Features

• Underfloor heating pipe repair coupler
• Designed for compatible UFH pipe
• Ideal for repairing damaged heating pipe
• Connects two pipe ends
• Compact fitting design
• Suitable for professional UFH installations
• Helps avoid replacing complete pipe loops
• Useful for accidental pipe damage
• Ideal for installation repairs
• Suitable for appropriate system alterations
• Quick mechanical connection
• No soldering required
• No electrical power required
• Ideal spare for UFH installers
• Suitable for domestic underfloor heating
• Suitable for commercial underfloor heating
• Can provide a permanent repair when correctly installed
• Easy to pressure test after installation

Technical Specification

• Product: Underfloor Heating Pipe Repair Coupler
• Product Type: Straight Pipe Repair Connector
• Application: Water Underfloor Heating
• Connection: Mechanical Pipe Connection
• Primary Use: Repairing Damaged UFH Pipe
• Secondary Use: Joining Compatible UFH Pipe
• Installation: In-Line
• Soldering Required: No
• Suitable For: Compatible Water Underfloor Heating Pipe
• System Type: Wet Underfloor Heating

Important: Always select the coupler that matches the exact pipe outside diameter and wall thickness.

What Is an Underfloor Heating Pipe Repair Coupler?

An underfloor heating repair coupler joins two sections of compatible heating pipe.

During a normal installation, installers should run each heating circuit continuously from the manifold, around the floor and back to the manifold.

However, pipe can occasionally become damaged.

In this situation, a repair coupler allows the installer to cut away the affected area and reconnect the remaining pipe.

Therefore, the coupler provides a practical solution without replacing the complete underfloor heating loop.

Repairing Accidentally Damaged Underfloor Heating Pipe

Accidental damage represents one of the most common reasons for needing an UFH repair fitting.

Damage can occur from:

• Drilling into the floor
• Screws
• Nails
• Cutting tools
• Flooring installation
• Kitchen installation
• Door fitting
• Partition installation
• Building work
• Renovation work
• Incorrect pipe handling

Fortunately, localised damage can often be repaired.

Firstly, expose enough pipe around the affected section. Next, remove the damaged part and prepare both pipe ends.

The repair coupler can then reconnect the circuit.

Finally, pressure test the system thoroughly before covering the repair.

Ideal for 16mm Underfloor Heating Pipe

16mm pipe remains one of the most widely used sizes for water underfloor heating.

Therefore, 16mm UFH repair couplers provide an essential spare for many professional installations.

However, outside diameter alone does not always guarantee compatibility.

For example, installers should also confirm the pipe wall thickness and construction.

Always match the repair fitting to the exact pipe specification before installation.

Suitable for Different UFH Pipe Types

Water underfloor heating systems use several types of pipe.

Depending on the specific repair coupler and pipe dimensions, compatible applications may include:

• PE-RT pipe
• PE-RT 3 layer pipe
• PE-RT-AL-PE-RT pipe
• PEX pipe
• PEX-AL-PEX pipe
• Multilayer composite pipe

However, installers must check compatibility before making the repair.

A fitting designed for one pipe construction or wall thickness may not suit another.

Repairing PE-RT Underfloor Heating Pipe

PE-RT provides excellent flexibility for water underfloor heating circuits.

However, accidental damage can still occur during or after installation.

A compatible repair coupler allows the installer to reconnect suitable PE-RT pipe without replacing the entire circuit.

Therefore, keeping the correct coupler alongside your UFH installation equipment can save considerable time if damage occurs.

Repairing Multilayer Underfloor Heating Pipe

Multilayer pipes such as PE-RT-AL-PE-RT and PEX-AL-PEX combine polymer layers with an aluminium core.

These pipes require correctly matched fittings.

Furthermore, freshly cut multilayer pipe may require calibration and reaming before the fitting goes into position.

Therefore, always use the appropriate pipe preparation tools and follow the fitting instructions.

Do Underfloor Heating Pipes Normally Have Joints?

Ideally, no.

A professionally designed underfloor heating loop should normally use one continuous pipe length from the manifold and back again.

This reduces the number of connections within the floor.

However, accidental damage can make a repair unavoidable.

In this situation, using the correct purpose-designed repair coupler provides a much better solution than attempting an unsuitable improvised repair.

Can You Repair Underfloor Heating Pipe?

Yes. Suitable water underfloor heating pipe can often be repaired using a correctly matched pipe repair coupler.

The damaged section must first be located and exposed.

Next, installers should remove all damaged pipe rather than simply joining immediately beside the puncture.

After preparing the remaining pipe ends, install the repair fitting according to its instructions.

Most importantly, thoroughly pressure test the circuit before covering the repair.

Pressure Testing After a UFH Pipe Repair

Pressure testing plays an essential role after any underfloor heating pipe repair.

Do not cover the coupler immediately after installation.

Instead, refill the circuit and complete the appropriate pressure test.

Then, carefully inspect the repaired connection.

The test helps confirm that:

• The fitting is correctly installed
• Both pipe connections remain secure
• No water escapes from the joint
• The repaired loop maintains pressure
• The circuit is ready for reinstatement

Only cover the repair once you are satisfied that the connection remains completely sound.

Finding a Leak in Underfloor Heating Pipe

Sometimes the damage is immediately obvious. For example, a drill may penetrate a known pipe location.

However, other leaks can prove harder to locate.

Possible signs include:

• Falling system pressure
• Visible water
• Damp flooring
• Reduced heating performance
• Regular system repressurisation
• Moisture around a known drilling location

Before cutting into a finished floor, accurately identify the source of the leak wherever possible.

This helps minimise unnecessary damage to surrounding flooring.

How to Repair Underfloor Heating Pipe

The exact procedure depends on the pipe and repair fitting. However, a typical repair involves several stages.

Firstly, isolate and depressurise the affected circuit.

Next, carefully expose the damaged pipe.

Cut out the damaged section using a suitable pipe cutter. Make sure both remaining pipe ends are clean and square.

Prepare the pipe ends as required. Multilayer pipe may require a suitable reamer or calibration tool.

Next, install the correct repair coupler according to its instructions.

Finally, refill and pressure test the circuit thoroughly.

Do not reinstate the floor until the repaired connection has passed the appropriate pressure test.

Always Use a Proper Pipe Cutter

A clean, square cut helps create a reliable pipe connection.

Therefore, use a suitable underfloor heating pipe cutter rather than a general-purpose knife or saw.

An uneven cut can prevent the pipe from seating correctly inside the fitting.

Furthermore, a damaged pipe end can compromise seals or connection components.

A dedicated pipe cutter provides a quick and accurate solution.

Reaming Multilayer UFH Pipe

Multilayer pipe can become slightly distorted after cutting.

Therefore, installers may need to use a pipe reamer or calibrator before installing the repair coupler.

The tool restores the pipe end to the correct shape. Furthermore, suitable reamers can prepare the internal edge for fitting insertion.

Correct preparation helps prevent damage to seals and ensures the pipe sits correctly within the fitting.

Keep Repair Couplers in Your UFH Installation Kit

Pipe damage rarely happens at a convenient time.

Therefore, professional underfloor heating installers should consider carrying compatible repair couplers.

A small fitting takes up almost no space in a toolbox or van.

However, having one available can prevent a damaged pipe from stopping work on site.

Useful UFH installation spares include:

• Pipe repair couplers
• Eurocones
• Pipe cutters
• Reamers
• Pipe clips
• Manifold connectors
• Pressure test equipment
• Spare pipe

Repair Coupler or Replace the Complete Loop?

Replacing the complete loop remains the ideal solution where doing so remains practical.

For example, if pipe damage occurs before the screed or finished floor goes down, replacing the loop may be straightforward.

However, replacement can become considerably more difficult once the floor is complete.

Therefore, a suitable repair coupler can provide a practical permanent repair when complete pipe replacement would cause major disruption.

The installer should assess each situation individually.

Repairing UFH Pipe Before Screeding

If pipe becomes damaged before screeding, installers have easier access to the circuit.

Firstly, determine whether replacing the complete loop makes more sense.

If a repair remains the preferred option, install the correct coupler and pressure test it thoroughly.

Furthermore, keep the circuit under the appropriate test pressure during subsequent floor installation where the system specification requires it.

This makes any further damage easier to identify.

Repairing UFH Pipe in a Finished Floor

Damage to pipe beneath a completed floor requires greater care.

The installer must expose enough pipe to complete the repair without causing additional damage.

Once exposed, remove the damaged section and fit the appropriate coupler.

After pressure testing, protect and reinstate the repaired area using an appropriate method for the floor construction.

Because floor structures vary considerably, always consider the surrounding screed, insulation and floor finish.

Suitable for Professional UFH Installers

Repair couplers provide a useful component for anyone regularly installing or maintaining water underfloor heating.

Suitable users include:

• Underfloor heating installers
• Plumbers
• Heating engineers
• Heat pump installers
• Building contractors
• Property maintenance engineers
• Plumbing contractors
• Heating contractors
• Professional floor installers

Why Buy an Underfloor Heating Pipe Repair Coupler from Kudos Trading?

Kudos Trading supplies professional water underfloor heating products for installers, plumbers and heating engineers throughout the UK.

Furthermore, our extensive UFH range makes it easy to purchase repair couplers alongside pipe, cutters, reamers, Eurocones and manifolds.

When you order from Kudos Trading, you’ll benefit from:

• Professional UFH components
• Competitive UK prices
• Fast nationwide delivery
• Expert technical support
• Extensive product availability
• Friendly customer service
• Over 25 years of underfloor heating experience

Frequently Asked Questions

Can underfloor heating pipe be repaired?

Yes. Suitable water underfloor heating pipe can often be repaired with a correctly matched repair coupler.

What is an underfloor heating pipe repair coupler?

It is a straight mechanical fitting designed to reconnect two compatible sections of UFH pipe after damage or cutting.

Can I repair a hole drilled into UFH pipe?

Often, yes. The damaged section needs exposing and removing before installers reconnect the sound pipe with a suitable repair fitting.

Do I need to replace the whole underfloor heating loop?

Not always. If replacing the complete circuit would cause significant disruption, a correctly installed repair coupler can provide a practical solution.

Can I use a repair coupler on 16mm UFH pipe?

Choose a repair coupler specifically designed for the exact pipe dimensions. Many UFH systems use 16mm pipe, but wall thickness and construction must also match.

Can I use a repair coupler on PE-RT pipe?

Yes, provided the coupler specifically suits the dimensions and construction of the PE-RT pipe.

Can I repair PEX-AL-PEX underfloor heating pipe?

Yes, with a suitable fitting. However, multilayer pipe may require calibration and reaming before connection.

Can I repair PE-RT-AL-PE-RT pipe?

Yes, when using a compatible repair fitting designed for the exact pipe specification.

Should underfloor heating pipe have joints beneath the floor?

Ideally, each circuit should use a continuous pipe length. However, a correctly installed purpose-designed repair coupler provides a solution when accidental damage makes a joint necessary.

Do I need to pressure test the pipe after repair?

Yes. Always complete an appropriate pressure test after repairing an underfloor heating circuit and before covering the fitting.

Can a UFH repair coupler be buried in screed?

A suitable permanent repair fitting may be incorporated into the floor where its manufacturer and system specification permit it. Always follow the relevant installation instructions and protect the repair appropriately.

Should I use a pipe cutter?

Yes. A suitable pipe cutter creates a clean, square pipe end and helps ensure correct fitting installation.

Do I need a reamer?

That depends on the pipe construction and fitting. Multilayer UFH pipe commonly requires calibration or reaming after cutting.

Can I use a normal plumbing compression fitting?

Use a purpose-designed fitting compatible with the exact underfloor heating pipe. Do not assume a general plumbing fitting suits concealed UFH pipework.

What happens if someone screws through my underfloor heating pipe?

Stop the system, expose the damaged section and assess the pipe. A suitable repair coupler can often reconnect the circuit without replacing the entire loop.

Is it worth keeping spare repair couplers?

Yes. They are small, inexpensive installation spares that can save considerable time if pipe becomes accidentally damaged on site.

Related Products

• Underfloor Heating Pipe
• 16mm PE-RT 3 Layer Pipe
• PE-RT-AL-PE-RT 5 Layer Pipe
• PEX-AL-PEX Multilayer Pipe
• Pre-Insulated Heating Pipe
• Underfloor Heating Pipe Cutters
• Underfloor Heating Pipe Reamers
• Underfloor Heating Eurocones
• Underfloor Heating Manifolds
• Underfloor Heating Pressure Test Pumps
• Underfloor Heating Pipe Clips
• Underfloor Heating Clip Rail
• Underfloor Heating Installation Tools

Next Working Day Delivery: Yes, we hold all our products in stock at our 7000 sq ft Nottingham warehouse and at our 3000 sq ft warehouse in Market Harborough and use DPD for a tracked next-day delivery.

Collection Available: You can always collect from our Norttinagham location and help yourself to a free tea and coffee
