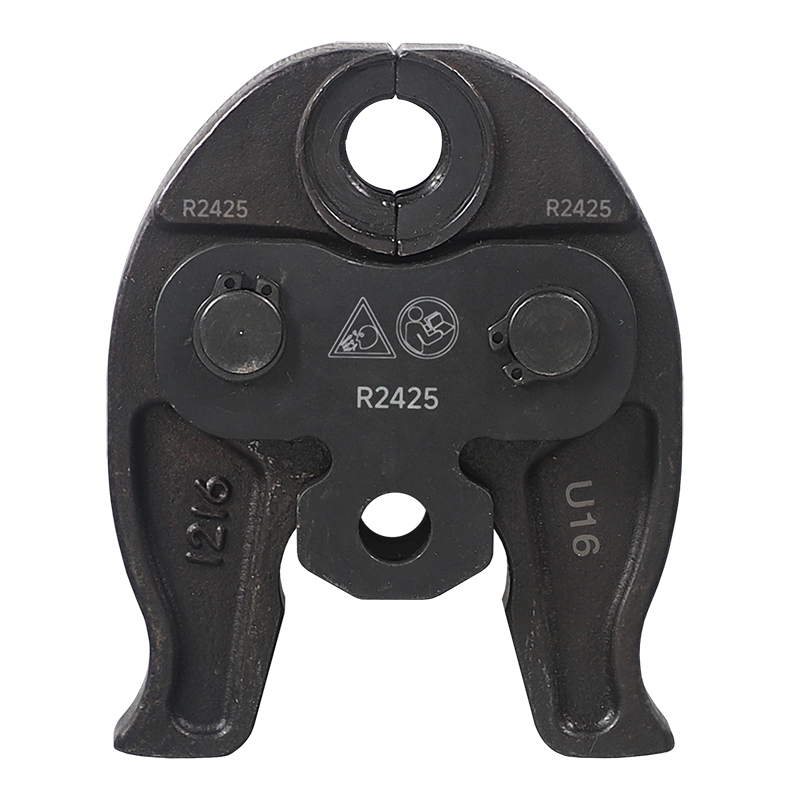

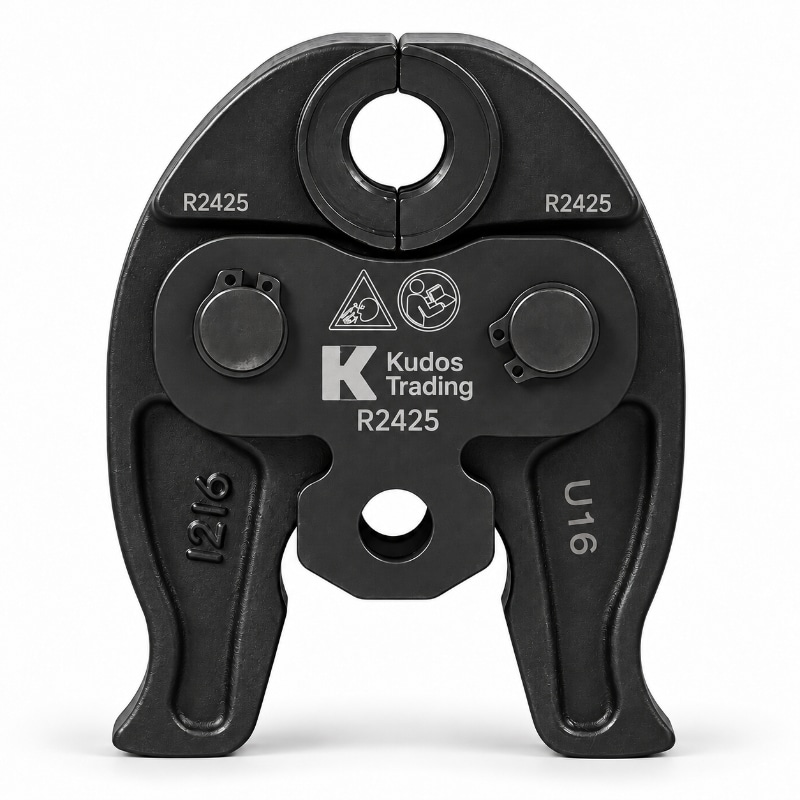

16mm U-Press MLCP Jaw
Designed for 16mm MLCP Fittings
This press jaw is designed for compatible 16mm U-profile MLCP press fittings.
MLCP systems use multilayer pipe together with mechanical press fittings. The press tool closes the jaw around the fitting to form the connection.
Therefore, using the correct jaw profile and fitting size is essential.
Always confirm that the fitting requires a 16mm U-profile jaw before pressing.
Compatible with the ZLX-4064 Press Tool
This jaw is designed for the ZLX-4064 Electric Hydraulic Press Tool.
The manufacturer code is ZLX-4064-A-U16.
The ZLX-4064 tool accepts U-profile jaws in 16mm, 20mm, 25mm and 32mm. It also supports separate M-profile jaws for compatible copper press fittings.
U-Profile Press Connection
Press systems use different jaw profiles.
This product uses the U profile commonly found on compatible multilayer composite pipe fittings.
Therefore, do not use it on M-profile copper press fittings.
Choosing the wrong profile may prevent the fitting from forming the intended joint.
Fast Mechanical Jointing
Press fitting removes the need for traditional soldering.
First, cut the pipe squarely.
Next, calibrate and prepare the MLCP pipe end.
Then insert the compatible fitting fully.
Finally, position the 16mm U-profile jaw correctly and complete the press cycle.
This creates a mechanical connection without a naked flame.
Ideal for Plumbing and Heating
16mm MLCP fittings appear across many modern plumbing and heating installations.
Typical applications include:
- Hot and cold water systems
- Central heating
- Underfloor heating
- Radiator connections
- Plumbing distribution
- New-build projects
- Refurbishment work
- Plant rooms
- Property maintenance
Always check that the pipe and fitting system supports the intended application.
Replacement 16mm Press Jaw
Press jaws work hard throughout their service life.
Therefore, an installer may eventually need a replacement because of wear or damage.
This jaw provides a direct 16mm U-profile option for the ZLX-4064 press tool.
The exact manufacturer code also makes replacement identification easier.
Build a Complete U-Press Jaw Set
Kudos Trading also stocks additional U-profile jaws for the same ZLX-4064 tool.
Available sizes include:
- 16mm
- 20mm
- 25mm
- 32mm
Therefore, installers can build a complete MLCP press-jaw set around one electric hydraulic press tool.
Correct Jaw Size Matters
The jaw size must match the press fitting.
For example, use this 16mm jaw with compatible 16mm U-profile fittings.
Do not attempt to press a 20mm, 25mm or 32mm fitting with this jaw.
Always check the fitting size before starting the press cycle.
Prepare MLCP Pipe Before Pressing
Correct pipe preparation helps protect the fitting seals.
First, make a clean square cut.
Then re-round and calibrate the pipe where required.
Next, chamfer the pipe end according to the fitting instructions.
Finally, insert the fitting fully before pressing.
Good preparation helps create a more consistent joint.
Suitable for Professional Installers
The 16mm U-Press Jaw suits:
- Plumbers
- Heating engineers
- Underfloor heating installers
- Mechanical contractors
- Property developers
- Maintenance engineers
- Professional installers
Its dedicated design also makes it useful for installers who regularly work with multilayer plumbing systems.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Kudos Trading |
| Product | U-Press Jaw |
| Manufacturer Code | ZLX-4064-A-U16 |
| Jaw Size | 16mm |
| Press Profile | U Profile |
| Compatible Tool | ZLX-4064 Electric Hydraulic Press Tool |
| Pipe System | Compatible MLCP / Multilayer Composite Pipe |
| Application | Plumbing, Heating and Underfloor Heating |
| Product Weight | 1.2kg |
The current Kudos product specification lists the jaw at 1.2kg and identifies it as model ZLX-4064-A-U16.
Why Choose a Dedicated 16mm U-Press Jaw?
A correctly matched jaw provides several benefits:
- Designed for 16mm U-profile fittings
- Compatible with the ZLX-4064 press tool
- Fast mechanical jointing
- No soldering required
- No naked flame required
- Suitable for MLCP systems
- Ideal for plumbing
- Suitable for heating installations
- Useful for underfloor heating
- Simple replacement jaw option
- Professional press-fit installation
Why Buy From Kudos Trading?
Kudos Trading supplies professional plumbing, heating and underfloor heating products throughout the UK.
Our U-Press range includes compatible fittings, jaws and press tools.
Therefore, installers can source the pressing equipment and fittings from one supplier.
In addition, we have supplied underfloor heating products to the UK since 2001.
Frequently Asked Questions
What Tool Does the 16mm U-Press Jaw Fit?
This jaw fits the Kudos Trading ZLX-4064 Electric Hydraulic Press Tool.
What Is the Product Code?
The manufacturer code is ZLX-4064-A-U16.
What Size Fittings Does It Press?
This jaw is designed for compatible 16mm U-profile press fittings.
Can I Use It for MLCP Pipe?
Yes.
It works with compatible 16mm MLCP fittings that require a U-profile press jaw.
Can I Use It on Copper M Press Fittings?
No.
Copper M Press fittings require the correct M-profile jaw.
Does It Fit the Manual MLCP Press Tool?
No.
This jaw is designed specifically for the ZLX-4064 Electric Hydraulic Press Tool.
The manual MLCP tool uses its own jaw system.
Does the Press Tool Come with This Jaw?
No.
The ZLX-4064 press tool and its jaws are sold separately.
What Other U-Press Jaw Sizes Are Available?
Kudos Trading also stocks 20mm, 25mm and 32mm U-profile jaws for the ZLX-4064.
Do I Need to Prepare the MLCP Pipe Before Pressing?
Yes.
Follow the fitting manufacturer’s cutting, calibration and chamfering instructions before making the joint.
Is It Suitable for Underfloor Heating?
Yes.
It can press compatible 16mm U-profile MLCP fittings used in suitable underfloor heating installations.
