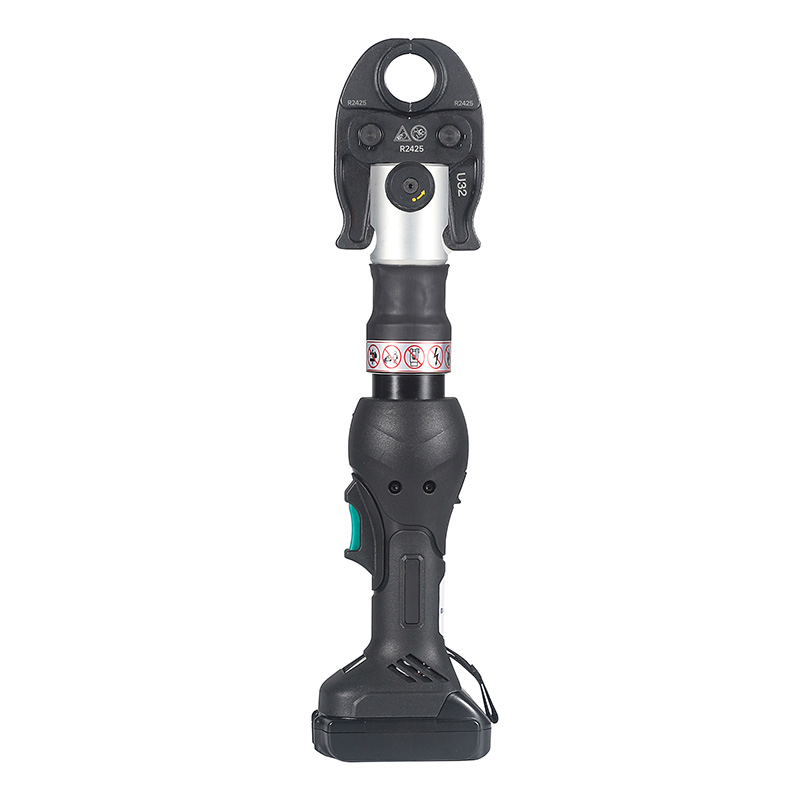

Electric Hydraulic Press Tool ZLX-4064
Professional Electric Press Tool
The ZLX-4064 gives professional installers a fast way to complete press-fit connections.
Its battery-powered hydraulic mechanism produces 25kN of pressing force. Therefore, installers can create consistent mechanical joints without manual pressing.
The compact design also makes the tool easier to use around plant rooms, heating systems and plumbing installations.
MLCP U-Press and Copper M-Press
One major advantage of the ZLX-4064 is its versatility.
With the correct jaw fitted, the same tool can work with both:
- MLCP U-profile fittings from 16mm to 32mm
- M-profile copper press fittings from 15mm to 28mm
Therefore, plumbers who work with both copper and multilayer pipe can use one powered tool platform.
MLCP U-Press Jaws Sold Separately
The press tool does not include pressing jaws.
Choose the U-profile jaws required for your MLCP installation:
- 16mm U-Press Jaw for ZLX-4064
- 20mm U-Press Jaw for ZLX-4064
- 25mm U-Press Jaw for ZLX-4064
- 32mm U-Press Jaw for ZLX-4064
Each jaw fits directly onto the ZLX-4064 tool.
Therefore, installers can buy only the sizes they need. Alternatively, build a complete 16mm, 20mm, 25mm and 32mm MLCP jaw set.
16mm U-Press Jaw
The 16mm U-Press Jaw suits compatible 16mm MLCP U-profile press fittings.
This size is widely used across plumbing, heating and underfloor heating installations.
20mm U-Press Jaw
Choose the 20mm U-Press Jaw for compatible 20mm multilayer fittings.
The jaw uses the same ZLX-4064 powered tool.
25mm U-Press Jaw
The 25mm U-Press Jaw covers compatible 25mm MLCP press fittings.
This size often suits larger plumbing and heating distribution pipework.
32mm U-Press Jaw
Use the 32mm U-Press Jaw for compatible 32mm U-profile fittings.
Therefore, the same compact press tool can cover MLCP systems from 16mm through to 32mm.
Compatible with M-Profile Copper Jaws
The ZLX-4064 can also use compatible M-profile jaws.
Available copper sizes include:
- 15mm M-Profile
- 22mm M-Profile
- 28mm M-Profile
Therefore, the tool can also support compatible M Press copper installations.
Always fit the correct profile and jaw size for the fitting.

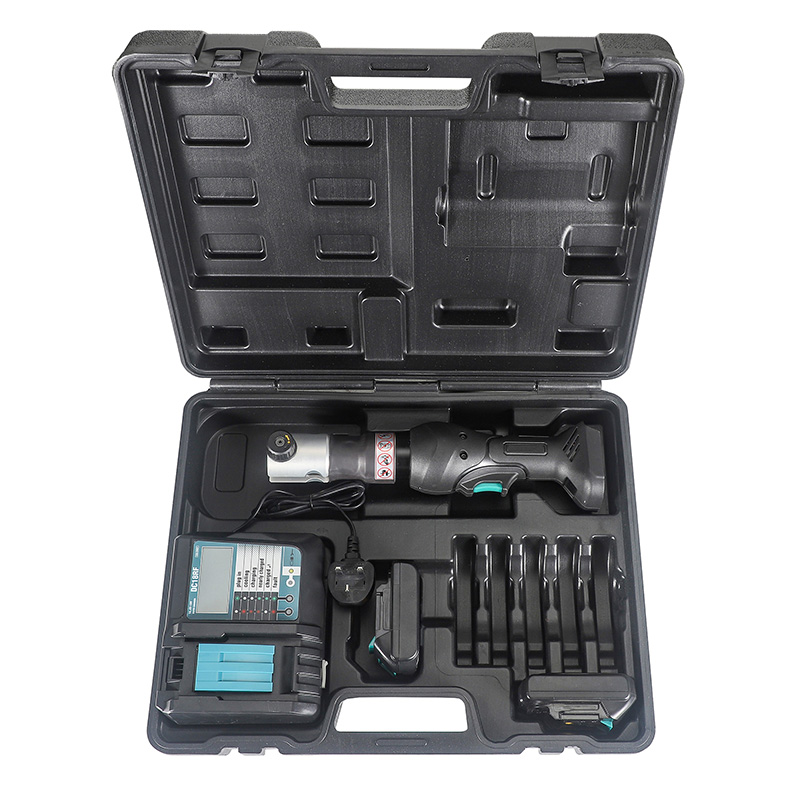

What Comes with the ZLX-4064?
The kit includes:
- ZLX-4064 electric hydraulic press tool
- 2 x 18V 2.5Ah batteries
- Battery charger
- Protective plastic carry case
Press jaws are not included and must be ordered separately.
25kN Hydraulic Pressing Force
The ZLX-4064 produces 25kN of pressing force.
This hydraulic output allows the tool to complete compatible press cycles quickly.
Therefore, it suits installers making repeated joints throughout the working day.
Powered operation also reduces the physical effort required compared with a manual press tool.
Two Rechargeable Batteries
The kit includes two 18V 2.5Ah batteries.
Therefore, installers can keep a second battery available while working on site.
The supplied charger allows the batteries to recharge between jobs.
This makes the tool practical for professional plumbing and heating work.
Protective Carry Case Included
The supplied plastic case protects the tool during transport and storage.
It also provides a convenient place to keep the charger and batteries together.
Therefore, the complete tool kit can remain organised in the van or workshop.
Compact Electric Press Tool
The press tool body measures approximately:
- 357mm long
- 100mm wide
- 83mm deep
The tool itself weighs approximately 1.9kg.
Its compact design makes it easier to position around pipework than larger press machines.
Ideal for MLCP Plumbing Systems
Multilayer composite pipe provides a versatile option for modern plumbing and heating installations.
The ZLX-4064 allows installers to press compatible U-profile fittings quickly.
Typical applications include:
- Hot and cold water services
- Central heating
- Underfloor heating
- Radiator pipework
- Plant rooms
- Plumbing manifolds
- New-build installations
- Refurbishment projects
Browse our complete U-Press fitting range for compatible fittings and accessories.
Use with Multilayer Composite Pipe
Kudos Trading stocks PEX/AL/PEX Multilayer Composite Pipe for plumbing and heating installations.
When used with compatible U-profile fittings, the ZLX-4064 provides a powered pressing solution.
Always prepare the MLCP pipe correctly before inserting the fitting.
Faster Than Manual Pressing
Manual press tools remain useful for smaller projects.
However, an electric hydraulic tool can save considerable effort on larger installations.
Simply position the correct jaw around the fitting and complete the press cycle.
As a result, installers can work through repeated connections more efficiently.
No Soldering or Naked Flame
Press fitting creates a mechanical joint.
Therefore, compatible press systems do not need soldering at the pressed connection.
This removes the need for a naked flame.
As a result, press fitting can prove particularly useful during refurbishment work and around finished surfaces.
Choose the Correct Press Profile
Different press fittings require different jaw profiles.
For MLCP fittings, use the correct U-profile jaw.
For compatible copper M Press fittings, use the correct M-profile jaw.
Never substitute one profile for another simply because it appears to fit.
Always check:
- Fitting profile
- Fitting size
- Pipe size
- Jaw profile
- Jaw size
- Tool compatibility
- Pipe preparation
- Insertion depth
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Kudos Trading |
| Product | Electric Hydraulic Press Tool |
| Product Code | ZLX-4064 |
| Operation | Battery Hydraulic |
| Pressing Force | 25kN |
| Battery System | 18V |
| Batteries Included | 2 x 18V 2.5Ah |
| Charger Included | Yes |
| Carry Case Included | Yes |
| Press Jaws Included | No – Sold Separately |
| U-Profile Jaw Sizes | 16mm, 20mm, 25mm, 32mm |
| M-Profile Jaw Sizes | 15mm, 22mm, 28mm |
| Tool Dimensions | Approx. 100 x 83 x 357mm |
| Tool Weight | Approx. 1.9kg |
| Suitable Pipe Systems | Compatible MLCP and Copper Press Systems |
Why Choose the ZLX-4064 Press Tool?
The ZLX-4064 offers several advantages for professional installers:
- Powerful 25kN hydraulic pressing
- Battery-powered operation
- Two batteries included
- Charger included
- Protective carry case included
- U-profile jaw compatibility
- M-profile jaw compatibility
- MLCP sizes from 16mm to 32mm
- Copper sizes from 15mm to 28mm
- Compact 1.9kg tool body
- No soldering required
- No naked flame at the press joint
- Jaws can be selected individually
- Suitable for professional plumbing and heating work
Why Buy From Kudos Trading?
Kudos Trading supplies professional press fitting tools, jaws and fittings throughout the UK.
Our U-Press range includes MLCP fittings and all four compatible ZLX-4064 U-profile jaw sizes.
Therefore, installers can build the press-tool setup that suits their work.
In addition, we stock compatible multilayer pipe, pipe preparation tools and plumbing accessories.
Frequently Asked Questions
Are Press Jaws Included with the ZLX-4064?
No.
All press jaws are sold separately.
Therefore, you can select the exact sizes and profiles required for your work.
Which MLCP Jaws Fit the ZLX-4064?
The compatible U-profile MLCP jaws are:
Can I Use the Tool for Copper M Press Fittings?
Yes.
The ZLX-4064 also accepts compatible 15mm, 22mm and 28mm M-profile jaws.
Those jaws are also sold separately.
What Comes in the Carry Case?
The kit includes the press tool, two 18V 2.5Ah batteries and charger.
The tool also comes inside its protective carry case.
Press jaws are not included.
How Much Pressing Force Does It Produce?
The tool produces 25kN of hydraulic pressing force.
Is It Suitable for MLCP?
Yes.
With the correct U-profile jaw, it supports compatible MLCP fittings from 16mm to 32mm.
What Is the Difference Between U and M Profile Jaws?
U-profile jaws suit compatible multilayer press fittings.
M-profile jaws suit compatible copper press fittings.
Therefore, always match the jaw profile to the fitting system.
Can I Buy the MLCP Jaws Individually?
Yes.
Kudos Trading sells the 16mm, 20mm, 25mm and 32mm U-profile jaws separately.
Is a Manual MLCP Tool Also Available?
Yes.
The Manual Press Tool for MLCP U Press Fittings provides an alternative for smaller installations.
