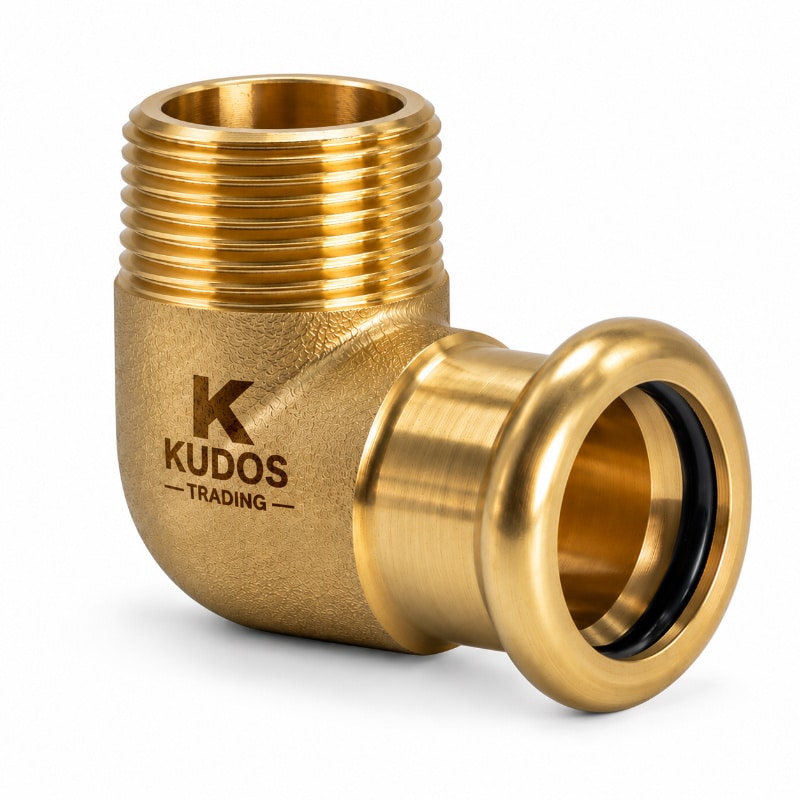

M Press Copper 90° Male Elbow
The M Press Copper 90° Male Elbow combines an M profile copper press connection with a male threaded connection at 90 degrees. Therefore, it provides a compact transition between compatible copper tube and female threaded valves, fittings or equipment.
The press socket connects directly to compatible copper pipe. Meanwhile, the external male thread connects into a suitable female threaded component.
Its 90-degree design changes direction and creates the threaded transition within one fitting. Consequently, installers can avoid using a separate elbow and threaded adaptor where this combined fitting suits the installation.
Furthermore, the M Press connection requires no solder, flux or blowtorch. As a result, the fitting provides a practical solution for professional water, plumbing and compatible heating installations.
Why Choose an M Press Copper 90° Male Elbow?
90° Direction Change
The elbow changes the pipe route through 90 degrees. Therefore, it provides a compact way to turn copper pipework.
Male Threaded Connection
The external thread connects into a compatible female threaded fitting, valve or component.
M Profile Press Connection
The copper side uses an M profile press socket. Consequently, compatible copper tube can be mechanically pressed into the fitting.
Two Functions in One Fitting
The fitting combines a 90-degree elbow and threaded transition.
Therefore, it can replace a separate elbow and male adaptor in suitable installations.
No Soldering Required
Mechanical pressing creates the copper connection. As a result, installers do not need solder or flux.
No Naked Flame
The press connection requires no blowtorch. Therefore, M Press technology helps reduce traditional hot works.
Key Features
- M Press copper 90° male elbow
- 90-degree direction change
- External male threaded connection
- M profile press connection
- Press x male thread configuration
- Connects copper tube to compatible female threaded components
- Compact combined fitting
- Helps reduce additional adaptors
- Suitable for compatible copper tube
- Suitable for water applications
- Suitable for compatible heating systems
- No soldering required on press connection
- No flux required on press connection
- No blowtorch required
- Reduced hot works
- Fast mechanical press connection
- Clean professional finish
- Suitable for new installations
- Ideal for refurbishment projects
- Useful for pipework alterations
- Suitable for domestic plumbing
- Suitable for commercial installations
- Ideal for plant rooms
- Compatible M profile pressing equipment required
Technical Specification
- Product: M Press Copper 90° Male Elbow
- Product Type: Male Threaded Elbow
- Configuration: M Press x Male Thread
- Angle: 90 Degrees
- Press Profile: M Profile
- Pipe Material: Compatible Copper Tube
- Thread: Male
- Application: Water, Plumbing and Compatible Heating Systems
- Jointing Method: Mechanical Press Connection / Threaded Connection
- Soldering Required: No
- Flux Required: No
- Open Flame Required: No
- Press Tool Required: Yes
- Press Jaw Required: Correct Size M Profile Jaw
Always confirm the exact thread size and type, fitting size, copper tube specification and system compatibility before installation.
What Is an M Press Male Elbow?
An M Press Male Elbow combines two connection methods within a single 90-degree fitting.
One side contains an M profile press socket for compatible copper tube.
The other side has an external male thread.
Therefore, the fitting can connect copper pipe directly into a compatible female threaded component while changing the direction through 90 degrees.
This combined design can simplify installations and reduce the number of separate fittings required.
What Is a Male Thread?
A male thread sits externally on the fitting.
Therefore, it screws into a compatible female threaded connection.
This differs from a female elbow, which contains its thread internally.
Male threaded elbows can provide useful connections to compatible:
- Valves
- Pumps
- Manifolds
- Heating components
- Plumbing equipment
- Threaded adaptors
- Plant room equipment
- Other female threaded connections
Always confirm thread compatibility before installation.
Why Use a 90° Male Elbow?
Many installations require a threaded transition at the same point as a change in pipe direction.
For example, a copper pipe may approach a female threaded valve at 90 degrees.
Using separate fittings could require an elbow, a short pipe section and a threaded adaptor.
However, the M Press Copper 90° Male Elbow combines the direction change and male threaded connection.
Therefore, it can provide:
- Fewer individual components
- Fewer connections
- Compact installation
- Reduced assembly time
- Neater pipework
- Professional appearance
Male Elbow vs Male Adaptor
Both fittings provide an external male threaded connection. However, their pipe orientation differs.
M Press Copper Male Elbow
The male elbow changes direction through 90 degrees.
Therefore, it works well when the female threaded component sits perpendicular to the incoming copper pipe.
M Press Copper Male Adaptor
A straight male adaptor keeps the threaded connection in line with the copper tube.
Consequently, it works better where no direction change is required.
The installation layout determines which fitting provides the best solution.
Male Elbow vs Female Elbow
The difference lies in the threaded connection.
M Press Copper Male Elbow
A male elbow has an external thread.
Therefore, it connects into a compatible female threaded component.
M Press Copper Female Elbow
A female elbow has an internal thread.
Consequently, it accepts a compatible male threaded component.
Always check the connection on the valve or equipment before selecting the elbow.
Two Functions in One Compact Fitting
Using separate components to create a 90-degree threaded transition can increase the overall size of the assembly.
The M Press Copper Male Elbow combines both functions.
Therefore, it can reduce the need for:
- Separate 90° elbow
- Short connecting pipe
- Separate male threaded adaptor
- Additional press connections
As a result, installers can create compact and organised copper pipework.
Ideal for Connecting Valves
Many plumbing and heating valves feature female threaded connections.
Therefore, an M Press Male Elbow can provide a convenient transition from copper pipe into a suitable valve.
The 90-degree configuration can also help position the connection correctly without introducing another elbow.
Typical applications may include suitable:
- Isolation valves
- Control valves
- Mixing valves
- Heating valves
- Pump connections
- Manifold components
- Plant room equipment
Always confirm thread size and compatibility before installation.
Ideal for Pumps and Heating Equipment
Heating equipment often combines threaded connections with copper distribution pipework.
Therefore, male threaded press fittings can simplify transitions between these components.
A 90° Male Elbow can prove particularly useful where space prevents a straight approach to the threaded connection.
Furthermore, its compact design can help keep surrounding pipework organised.
Ideal for Plant Rooms
Plant rooms frequently contain valves, pumps and other threaded equipment.
Consequently, installers often need to transition between copper tube and female threaded connections.
The M Press Copper Male Elbow provides a compact solution around compatible:
- Boilers
- Cylinders
- Pumps
- Valves
- Manifolds
- Heat exchangers
- Heating controls
- Water distribution equipment
Furthermore, the press connection helps reduce traditional hot works.
Copper Press Fittings for Water
M Press technology provides a mechanical method of connecting compatible copper tube.
Firstly, the installer prepares the copper pipe.
Next, the tube enters the fitting to the required insertion depth.
Finally, compatible M profile pressing equipment mechanically completes the connection.
Therefore, the press joint requires no traditional soldering.
Typical applications include:
- Hot water pipework
- Cold water pipework
- Water distribution
- Domestic plumbing
- Heating installations
- Plant rooms
- Commercial plumbing
- New build projects
- Refurbishments
- Maintenance work
No Soldering Required
The copper side uses an M Press connection.
Therefore, installers do not need:
- Solder
- Flux
- Blowtorch
- Naked flame at the press connection
Consequently, M Press provides a convenient mechanical alternative to traditional soldered copper jointing.
Reduced Hot Works
Copper pipework often runs near timber, insulation and finished surfaces.
Using a blowtorch in these areas may require additional precautions.
M Press technology avoids applying a naked flame to the press connection.
Therefore, the Male Elbow can prove particularly useful during refurbishment, maintenance and alteration work.
Creating the Male Threaded Connection
Firstly, confirm that the male thread matches the female connection on the adjoining component.
Next, prepare the threaded joint using a suitable sealing method where required.
Carefully engage the threads to avoid cross-threading.
Then, tighten the connection correctly while supporting the fitting.
Finally, check that the elbow remains correctly positioned and does not place unnecessary stress on the copper pipework.
Always follow the installation requirements for the fitting and connected component.
Avoid Over-Tightening Threaded Connections
Threaded connections require correct assembly.
However, excessive tightening can damage a fitting or connected component.
Therefore, use appropriate tools and support the fitting while making the connection.
Furthermore, avoid transferring unnecessary twisting force into an already pressed copper joint.
Correct installation protects both the threaded and press connections.
Plan the Elbow Orientation
A 90° threaded elbow has a fixed orientation once connected.
Therefore, plan the final position before completing the installation.
Check where the threaded component needs to face.
Furthermore, make sure there is enough space for:
- The connected component
- Press tool and jaw
- Installation tools
- Future servicing
- Surrounding pipework
Careful planning helps create a cleaner installation.
How to Install an M Press Copper 90° Male Elbow
Firstly, confirm the required press and male thread sizes.
Next, plan the elbow position and orientation.
Cut the compatible copper tube squarely using a suitable pipe cutter.
Then, remove internal and external burrs.
Inspect the copper tube and fitting for damage or contamination.
Mark the required insertion depth where specified.
Push the copper tube fully into the press socket.
Check the insertion mark.
Next, position the correct M profile press jaw around the designated pressing section.
Complete the full pressing cycle.
Connect the male thread into the compatible female threaded component using the appropriate sealing method.
Finally, inspect the complete assembly before commissioning the system.
Always Deburr Copper Pipe
Freshly cut copper tube can contain sharp edges.
Therefore, installers should deburr the pipe before inserting it into the press socket.
Correct preparation helps protect the internal sealing components.
Furthermore, properly prepared tube enters the fitting more smoothly and can reach the correct insertion depth.
A suitable pipe reamer or deburring tool should therefore form part of the installation kit.
Mark the Insertion Depth
Correct pipe insertion remains essential when installing press fittings.
Therefore, mark the required insertion depth where specified.
This provides a simple visual reference before pressing.
Furthermore, it helps identify any movement while positioning the press jaw.
Use the Correct M Profile Jaw
The press connection requires compatible M profile pressing equipment.
Before pressing, check:
- Fitting size
- Copper tube size
- M press profile
- Correct jaw size
- Press tool compatibility
- Jaw condition
- Pipe insertion depth
- Correct jaw position
- Elbow orientation
Never substitute another press profile simply because the jaw appears to fit around the fitting.
Manual or Powered M Press Tool?
A suitable manual M Press tool may provide a practical option where the tool and jaw support the exact fitting size.
Alternatively, compatible powered equipment can provide faster operation when completing larger installations.
Therefore, always confirm fitting, tool and jaw compatibility before pressing.
Ideal for Refurbishment Projects
Existing properties often provide limited working space.
Furthermore, copper pipework can sit close to finished surfaces and other building materials.
The M Press Male Elbow creates a compact threaded transition without requiring soldering at the press connection.
Therefore, it can prove particularly useful during:
- Heating upgrades
- Boiler replacements
- Plumbing alterations
- Bathroom refurbishments
- Kitchen refurbishments
- Plant room modifications
- Property extensions
- Maintenance work
M Press Male Elbows for Commercial Installations
Commercial plumbing and heating systems frequently combine copper pipe with threaded valves and equipment.
Therefore, press-to-thread fittings can simplify many connections.
M Press Copper 90° Male Elbows can form part of compatible systems within:
- Hotels
- Apartment developments
- Offices
- Schools
- Retail properties
- Public buildings
- Plant rooms
- Residential developments
- Commercial refurbishments
- Maintenance projects
Furthermore, their combined design can reduce the number of separate fittings required.
Complete M Press Copper Fitting System
The M Press Copper 90° Male Elbow forms part of a wider copper press fitting range.
Therefore, installers can combine compatible M Press fittings to create:
- Straight connections
- 45° direction changes
- 90° direction changes
- Pipework crossovers
- Equal branches
- Reduced branches
- Pipe size reductions
- Male threaded transitions
- Female threaded transitions
- Pipe terminations
Using compatible M profile fittings throughout the installation provides a consistent mechanical jointing method.
Why Buy From Kudos Trading?
Kudos Trading supplies professional plumbing, heating and underfloor heating products throughout the UK.
With more than 25 years of relevant industry experience, we understand the requirements of professional plumbers, heating engineers and installers.
Furthermore, our growing M Press copper range makes it easier to source fittings, tools and pipe preparation equipment from one specialist supplier.
Choose Kudos Trading for:
- Extensive M Press copper fitting range
- Professional plumbing and heating products
- Competitive UK pricing
- Fast nationwide delivery
- Practical technical support
- Friendly customer service
- More than 25 years of industry experience
- Support before and after your purchase
Frequently Asked Questions
What is an M Press Copper 90° Male Elbow?
It combines an M profile copper press connection with an external male threaded connection at 90 degrees.
What is the male thread used for?
The male thread connects into a compatible female threaded valve, fitting or component.
Does the fitting change the pipe direction?
Yes. It creates a 90-degree change of direction.
What is the difference between a male elbow and male adaptor?
A male elbow creates a 90-degree direction change. A male adaptor provides a straight in-line threaded transition.
What is the difference between a male and female elbow?
A male elbow has an external thread. A female elbow contains an internal thread.
Can I connect the male elbow directly into a valve?
Yes, provided the valve has a compatible female thread of the correct size and specification.
What press profile does it use?
The copper connection requires compatible M profile pressing equipment.
Does the press connection require soldering?
No. Mechanical pressing completes the copper connection.
Do I need a blowtorch?
No. The M Press connection requires no naked flame.
Does the threaded connection require sealing?
Use a suitable thread-sealing method where required by the fitting, system and connected component specifications.
Is it suitable for water pipework?
Yes. It is intended for compatible copper water and plumbing applications.
Can it be used for heating pipework?
Yes, where the fitting and complete system specification permit the intended water-based heating application.
Why use a male elbow instead of separate fittings?
It combines a 90-degree direction change and threaded transition. Therefore, it can reduce the number of components required.
Should I support the fitting while tightening the thread?
Yes. Correct support helps prevent unnecessary twisting forces from transferring into the adjoining copper pipework.
Do I need to deburr the copper pipe?
Yes. Correct pipe preparation helps protect the internal sealing components.
Should I mark the insertion depth?
Yes, where specified. It provides a useful visual check before pressing.
Can I use a U profile jaw?
No. Use compatible M profile pressing equipment.
Can I use a manual M Press tool?
Yes, provided the tool and jaw support the exact fitting size.
Can I use a powered press tool?
Yes, provided the press tool and M profile jaw are compatible with the fitting.
Is a male elbow useful in plant rooms?
Yes. It provides a compact transition between copper pipe and compatible female threaded equipment.
Related Products
- M Press Copper 90° Female Elbows
- M Press Copper Male Adaptors
- M Press Copper Female Adaptors
- M Press Copper 90° Elbows
- M Press Copper 90° Street Elbows
- M Press Copper 45° Elbows
- M Press Copper 45° Street Elbows
- M Press Copper Equal Tees
- M Press Copper Reducing Tees
- M Press Copper Reducing Couplers
- M Press Copper Fitting Reducers
- M Press Copper Full Crossovers
- M Press Copper Part Crossovers
- Manual M Press Tool
- M Profile Press Jaws
- Copper Pipe Cutters
- Pipe Reamers & Deburring Tools
Next Working Day Delivery: Yes, we hold all our products in stock at our 7000 sq ft Nottingham warehouse and at our 3000 sq ft warehouse in Market Harborough and use DPD for a tracked next-day delivery.
Collection Available: You can always collect from our Norttinagham location and help yourself to a free tea and coffee
