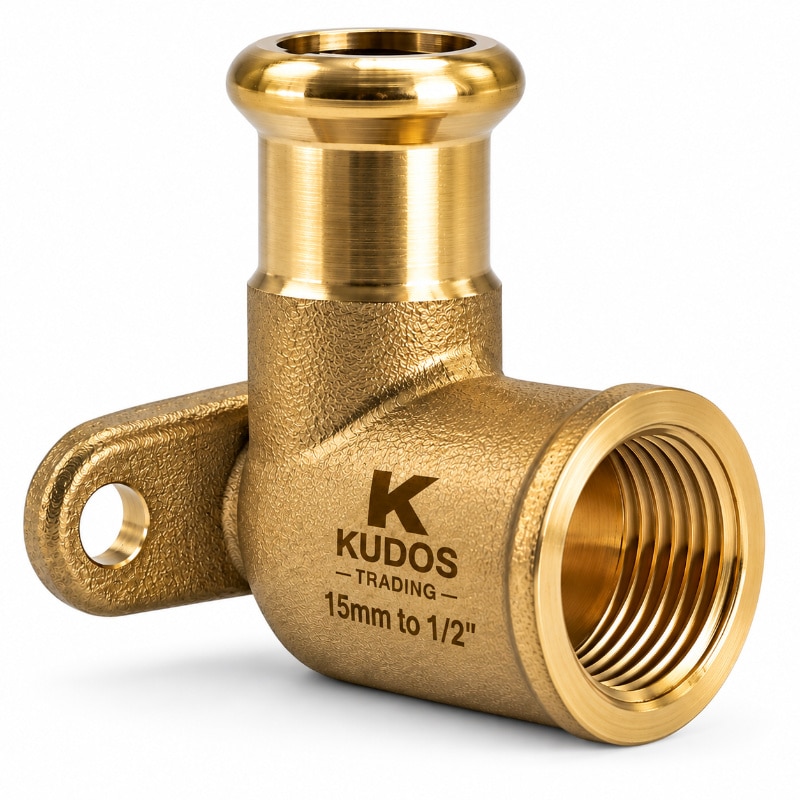

M Press Copper Wall Plate Elbow
The M Press Copper Wall Plate Elbow provides a secure transition from compatible copper pipework to a fixed female threaded outlet. Its integrated mounting plate allows installers to secure the fitting firmly to a suitable wall or supporting surface.
The fitting combines an M profile press connection with a female threaded outlet positioned at 90 degrees. Therefore, it provides a practical connection point for compatible male threaded components.
The mounting points help keep the outlet stable during installation and future use. Consequently, the fitting works particularly well where a secure, accurately positioned threaded connection is required.
Furthermore, the copper connection uses M Press technology. Therefore, installers can complete the press joint without solder, flux or a blowtorch.
Why Choose an M Press Copper Wall Plate Elbow?
Secure Wall-Mounted Connection
The integrated fixing plate allows the fitting to attach securely to a suitable supporting surface.
Female Threaded Outlet
The female connection accepts a compatible male threaded fitting or component.
90° Connection
The wall plate elbow turns the connection through 90 degrees. Therefore, the outlet can face away from the mounting surface.
M Profile Press Connection
The copper pipe connection uses the M press profile for fast mechanical jointing.
Helps Prevent Movement
Secure mounting provides additional support at the threaded connection. Consequently, the fitting can help prevent unwanted pipe movement during use or maintenance.
No Soldering Required
The M Press connection requires no solder or flux.
No Naked Flame
No blowtorch is required at the press joint. Therefore, the fitting helps reduce traditional hot works.
Key Features
- M Press copper wall plate elbow
- Integrated fixing plate
- Secure wall-mounted installation
- 90-degree configuration
- Female threaded outlet
- M profile press connection
- Press x female thread configuration
- Connects compatible copper tube to threaded components
- Helps support the threaded outlet
- Provides accurate outlet positioning
- Suitable for compatible copper tube
- Suitable for water applications
- Suitable for compatible heating applications
- No soldering required on press connection
- No flux required on press connection
- No blowtorch required
- Reduced hot works
- Fast mechanical press connection
- Clean professional installation
- Suitable for new installations
- Ideal for refurbishment projects
- Suitable for domestic plumbing
- Suitable for commercial plumbing
- Compatible M profile pressing equipment required
Technical Specification
- Product: M Press Copper Wall Plate Elbow
- Product Type: Wall Plate / Backplate Elbow
- Configuration: M Press x Female Thread
- Angle: 90 Degrees
- Mounting: Integrated Wall Fixing Plate
- Press Profile: M Profile
- Pipe Material: Compatible Copper Tube
- Thread: Female
- Application: Water, Plumbing and Compatible Heating Systems
- Jointing Method: Mechanical Press Connection / Threaded Connection
- Soldering Required: No
- Flux Required: No
- Open Flame Required: No
- Press Tool Required: Yes
- Press Jaw Required: Correct Size M Profile Jaw
Always confirm the exact fitting size, thread specification, copper tube compatibility and application before installation.
What Is an M Press Wall Plate Elbow?
An M Press Wall Plate Elbow combines a 90-degree elbow, female threaded outlet and mounting plate within one fitting.
The press socket connects to compatible copper tube.
Meanwhile, the female threaded outlet accepts a compatible male threaded component.
The mounting plate then allows the complete fitting to attach securely to a suitable surface.
Therefore, installers can create a fixed threaded connection without relying on the copper pipe alone to support the outlet.
What Is a Wall Plate Elbow Used For?
A wall plate elbow creates a secure connection point where copper pipework terminates at a fixed threaded outlet.
Rather than leaving the connection unsupported, the integrated plate provides fixing points.
Therefore, it can help create a stable connection for suitable:
- Taps
- Valves
- Plumbing outlets
- Service connections
- Threaded fittings
- Water connections
- Heating components
- Other compatible male threaded equipment
Always confirm the connection requirements of the component being installed.
Why Is the Mounting Plate Important?
Pipework should not always carry the mechanical load of an attached component.
For example, operating a valve can introduce movement or twisting forces.
The mounting plate allows the fitting to attach directly to a suitable supporting structure.
Therefore, it can:
- Improve connection stability
- Reduce unwanted movement
- Maintain outlet position
- Support attached components
- Protect adjoining pipework
- Create a professional installation
The supporting surface and fixings must remain suitable for the intended application.
Wall Plate Elbow vs Standard Female Elbow
Both fittings combine a 90-degree direction change with a female threaded connection.
However, the wall plate version includes dedicated mounting points.
M Press Wall Plate Elbow
The mounting plate allows the fitting to attach securely to a supporting surface.
Therefore, it works particularly well where the threaded outlet needs a fixed position.
M Press 90° Female Elbow
A standard female elbow connects directly within the pipework without an integrated wall mounting plate.
Consequently, it suits installations where separate fixing of the threaded outlet is unnecessary.
Wall Plate Elbow vs Female Adaptor
A female adaptor normally provides a straight transition from copper tube to a female thread.
In contrast, the wall plate elbow changes direction through 90 degrees and includes mounting points.
Therefore, it can provide three functions within one fitting:
- Copper press connection
- 90° direction change
- Secure female threaded outlet
This combined design can simplify suitable installations.
Female Threaded Outlet
The wall plate elbow contains an internal female thread.
Therefore, a compatible male threaded component screws into the outlet.
Always check the exact thread specification before assembly.
The connection may be used with suitable:
- Male threaded valves
- Male threaded adaptors
- Plumbing outlets
- Service fittings
- Heating components
- Other compatible threaded equipment
Correct thread compatibility remains essential.
Ideal for Fixed Plumbing Outlets
Some plumbing connections need to remain firmly positioned.
For example, movement at a threaded outlet can make installation and future servicing more difficult.
The wall plate elbow provides dedicated fixing points.
Consequently, installers can secure the fitting before connecting the adjoining component.
This creates a stable transition between the concealed or surface-mounted copper pipework and the threaded outlet.
Ideal for Service Connections
Wall plate elbows can provide useful fixed connection points for suitable plumbing equipment.
The fitting can be mounted to a secure surface while copper pipe approaches from the required direction.
Therefore, it can help create organised service connections in:
- Utility areas
- Service cupboards
- Plant rooms
- Kitchens
- Bathrooms
- Commercial buildings
- Maintenance installations
Always select the fitting and mounting arrangement for the specific application.
Copper Press Fittings for Water
M Press technology provides a mechanical method of connecting compatible copper tube.
Firstly, the installer prepares the pipe correctly.
Next, the copper tube enters the press socket to the required depth.
Finally, compatible M profile pressing equipment completes the joint.
Therefore, the press connection requires no traditional soldering.
M Press fittings can form part of suitable:
- Hot water pipework
- Cold water pipework
- Water distribution
- Domestic plumbing
- Heating installations
- Plant rooms
- Commercial plumbing
- New build projects
- Refurbishments
- Maintenance work
No Soldering Required
The copper side uses an M Press connection.
Therefore, installers do not need:
- Solder
- Flux
- Blowtorch
- Naked flame at the press joint
Consequently, M Press provides a convenient mechanical alternative to traditional soldered copper connections.
Reduced Hot Works
Wall-mounted fittings can sit close to timber, plasterboard and finished surfaces.
Therefore, removing the need for a blowtorch at the press connection can provide an important practical advantage.
M Press technology creates the copper joint mechanically.
As a result, the wall plate elbow can prove particularly useful during refurbishment and alteration work.
How to Install an M Press Copper Wall Plate Elbow
Firstly, confirm the required copper connection and female thread sizes.
Next, determine the correct position and orientation of the threaded outlet.
Check that the supporting surface can securely hold the fitting.
Then, prepare the compatible copper tube.
Cut the pipe squarely with a suitable pipe cutter.
Remove internal and external burrs.
Inspect the copper tube and fitting for damage or contamination.
Mark the required insertion depth where specified.
Push the copper tube fully into the press socket.
Next, position the correct M profile press jaw around the designated pressing section.
Complete the full pressing cycle.
Secure the mounting plate using suitable fixings for the supporting structure and application.
Finally, connect the compatible male threaded component using the appropriate sealing method.
Inspect the complete installation before commissioning the system.
Secure the Wall Plate Correctly
The mounting plate is designed to provide physical support.
Therefore, the quality of the fixing surface remains important.
Choose suitable fixings for the material behind the fitting.
For example, the correct fixing method can differ between timber, masonry and other supporting structures.
Furthermore, position the fitting accurately before final tightening.
A secure installation helps prevent movement when the threaded component is fitted or serviced.
Plan the Outlet Position
Correct positioning is particularly important with a wall plate elbow.
Once secured, the fitting determines the location and orientation of the threaded outlet.
Therefore, check:
- Finished wall position
- Required outlet height
- Required outlet direction
- Copper pipe route
- Connected component dimensions
- Access for press equipment
- Access for future servicing
Careful planning helps create a neat finished installation.
Creating the Threaded Connection
Firstly, confirm that the male component matches the female thread.
Next, use a suitable thread-sealing method where required.
Carefully engage the threads to avoid cross-threading.
Then, tighten the connection correctly while supporting the wall plate elbow.
Avoid excessive force.
Finally, check the complete assembly before commissioning the system.
Avoid Over-Tightening
Threaded connections need correct tightening.
However, excessive force can damage the fitting or connected component.
Therefore, use appropriate tools and follow the relevant installation instructions.
The wall plate should also remain securely fixed while making the threaded connection.
Consequently, twisting forces are less likely to transfer into the adjoining copper pipework.
Always Deburr Copper Pipe
Freshly cut copper tube can contain sharp edges.
Therefore, installers should remove internal and external burrs before inserting the tube into the press socket.
Correct preparation helps protect the internal sealing components.
Furthermore, properly prepared copper tube can enter smoothly and reach the required insertion depth.
Mark the Insertion Depth
Correct pipe insertion remains essential.
Therefore, mark the required insertion depth where specified.
The mark provides a simple visual reference before pressing.
Furthermore, it helps identify any movement while positioning the fitting or press jaw.
Use the Correct M Profile Jaw
The press connection requires compatible M profile pressing equipment.
Before pressing, check:
- Fitting size
- Copper tube size
- M press profile
- Correct jaw size
- Press tool compatibility
- Jaw condition
- Pipe insertion depth
- Correct jaw position
- Wall plate orientation
Never substitute another press profile simply because it appears to fit around the fitting.
Allow Access for the Press Tool
The wall plate may sit close to a wall, timber support or other structure.
Therefore, installers should consider press tool access before permanently positioning the fitting.
Make sure the compatible M profile jaw can fully engage around the pressing section.
Furthermore, allow enough room for the press tool to complete its full operating cycle.
Planning tool access before fixing the elbow can make installation considerably easier.
Manual or Powered M Press Tool?
A suitable manual M Press tool may provide a practical option where the tool and jaw support the exact fitting size.
Alternatively, compatible powered press equipment can provide faster operation on larger installations.
However, wall plate installations can offer limited tool access.
Therefore, always check tool clearance and compatibility before positioning the fitting.
Ideal for Refurbishment Projects
Wall plate elbows can prove particularly useful when upgrading existing plumbing.
For example, an installer may need to create a new fixed threaded outlet from existing copper pipework.
The integrated mounting plate provides support.
Meanwhile, the M Press connection eliminates soldering at the copper joint.
Therefore, the fitting can work well during:
- Bathroom refurbishments
- Kitchen refurbishments
- Utility room installations
- Heating upgrades
- Plumbing alterations
- Property extensions
- Plant room modifications
- Maintenance work
M Press Wall Plate Elbows for Commercial Installations
Commercial plumbing systems often require secure service connections and fixed outlets.
Therefore, a wall plate elbow can provide a practical transition from copper pipework to compatible threaded equipment.
Suitable applications can include:
- Hotels
- Apartment developments
- Offices
- Schools
- Retail properties
- Public buildings
- Plant rooms
- Residential developments
- Commercial refurbishments
- Maintenance projects
Furthermore, press technology allows installers to complete the copper connection without traditional soldering.
Complete M Press Copper Fitting System
The M Press Copper Wall Plate Elbow forms part of a wider copper press fitting range.
Therefore, installers can combine compatible fittings to create:
- Straight connections
- 45° direction changes
- 90° direction changes
- Fixed wall outlets
- Pipework crossovers
- Equal branches
- Reduced branches
- Pipe size reductions
- Male threaded transitions
- Female threaded transitions
- Pipe terminations
Using compatible M profile fittings throughout an installation provides a consistent mechanical jointing method.
Why Buy From Kudos Trading?
Kudos Trading supplies professional plumbing, heating and underfloor heating products throughout the UK.
With more than 25 years of relevant industry experience, we understand the requirements of professional plumbers, heating engineers and installers.
Furthermore, our growing M Press copper range makes it easier to source fittings, tools and pipe preparation equipment from one specialist supplier.
Choose Kudos Trading for:
- Extensive M Press copper fitting range
- Professional plumbing and heating products
- Competitive UK pricing
- Fast nationwide delivery
- Practical technical support
- Friendly customer service
- More than 25 years of industry experience
- Support before and after your purchase
Frequently Asked Questions
What is an M Press Copper Wall Plate Elbow?
It is a 90-degree copper press fitting with a female threaded outlet and an integrated mounting plate.
What is the mounting plate used for?
The plate allows the fitting to be securely attached to a suitable supporting surface.
Why use a wall plate elbow?
It provides a fixed threaded connection while supporting the outlet independently of the adjoining copper pipework.
Does it have a female thread?
Yes. The outlet contains a female thread for a compatible male threaded component.
What is the difference between a wall plate elbow and a standard female elbow?
A wall plate elbow includes dedicated mounting points. A standard female elbow does not have an integrated fixing plate.
Does it change the pipe direction?
Yes. The fitting creates a 90-degree transition.
What press profile does it use?
The copper connection requires compatible M profile pressing equipment.
Does the press connection require soldering?
No. Mechanical pressing completes the copper connection.
Do I need a blowtorch?
No. The press joint requires no naked flame.
Can I connect a male threaded valve?
Yes, provided its thread matches the female connection on the wall plate elbow.
Does the threaded connection require sealing?
Use a suitable thread-sealing method where required by the fitting, system and connected component.
Is it suitable for water pipework?
Yes. It is intended for compatible copper water and plumbing applications.
Can it be used on heating systems?
Yes, where the fitting and complete system specification permit the intended water-based heating application.
What fixings should I use?
Use fixings suitable for the supporting surface, installation and expected mechanical load.
Should I fix the wall plate securely?
Yes. Secure mounting is one of the main purposes of a wall plate elbow.
Do I need to deburr the copper pipe?
Yes. Correct pipe preparation helps protect the internal sealing components.
Should I mark the insertion depth?
Yes, where specified. It provides a useful visual check before pressing.
Can I use a U profile jaw?
No. Use compatible M profile pressing equipment.
Can I use a manual M Press tool?
Yes, provided the tool and jaw support the exact fitting size and there is sufficient access.
Should I check press tool clearance before fixing the elbow?
Yes. Confirm that the tool and jaw can access the pressing section before permanently positioning the fitting.
Related Products
- M Press Copper 90° Female Elbows
- M Press Copper 90° Male Elbows
- M Press Copper Female Adaptors
- M Press Copper Male Adaptors
- M Press Copper 90° Elbows
- M Press Copper 90° Street Elbows
- M Press Copper 45° Elbows
- M Press Copper Equal Tees
- M Press Copper Reducing Tees
- M Press Copper Reducing Couplers
- M Press Copper Fitting Reducers
- M Press Copper Full Crossovers
- M Press Copper Part Crossovers
- Manual M Press Tool
- M Profile Press Jaws
- Copper Pipe Cutters
- Pipe Reamers & Deburring Tools
Next Working Day Delivery: Yes, we hold all our products in stock at our 7000 sq ft Nottingham warehouse and at our 3000 sq ft warehouse in Market Harborough and use DPD for a tracked next-day delivery.
Collection Available: You can always collect from our Norttinagham location and help yourself to a free tea and coffee
