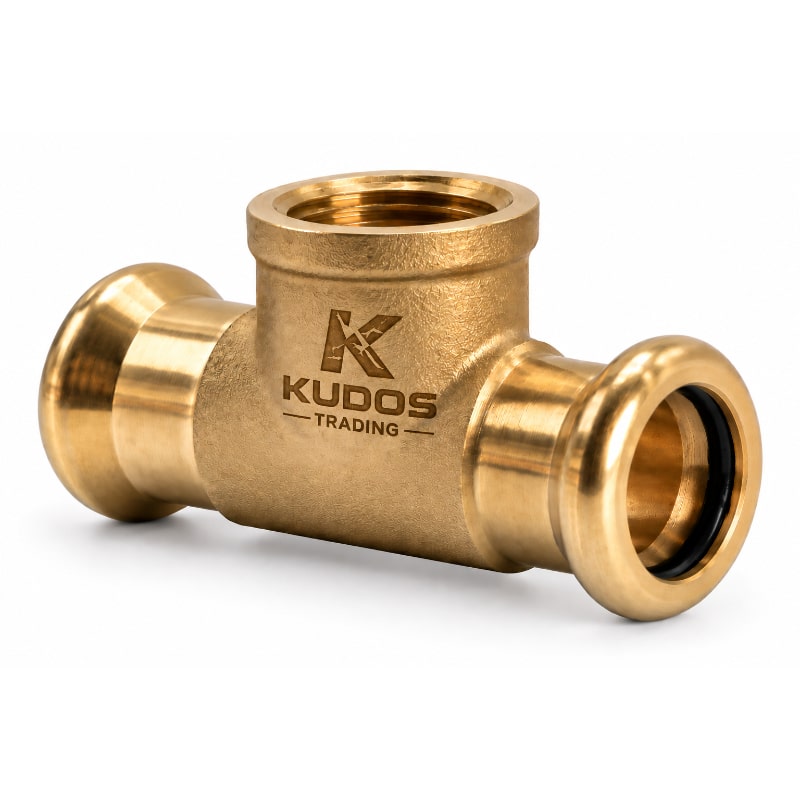

M Press Copper Female Tee
The M Press Copper Female Tee creates a branch within compatible copper water pipework. In addition, it provides a female threaded connection for suitable male threaded components.
Two ends feature M profile press sockets for compatible copper tube. Meanwhile, the 90° branch provides the female threaded outlet.
Therefore, installers can create a threaded branch without using a separate tee and threaded adaptor. As a result, the finished installation can remain compact and organised.
The range covers copper pipe sizes from 15mm to 54mm. Consequently, it can suit domestic plumbing, heating and larger commercial installations.
Furthermore, the press connections require no solder or flux. Therefore, installers can create the copper joints without using a blowtorch at the press connections.
Why Choose an M Press Copper Female Tee?
The fitting combines a copper pipe branch and threaded outlet within one component. Therefore, it can simplify installations where threaded equipment connects directly from a main copper pipe run.
Key benefits include:
- Two M profile press connections
- Female threaded branch
- Copper sizes from 15mm to 54mm
- 90° branch connection
- Compact fitting design
- Suitable for water pipework
- Suitable for compatible heating systems
- No soldering required
- No flux required
- No blowtorch required at the press joints
- Reduced hot works
- Suitable for domestic and commercial installations
Furthermore, the combined design can reduce the number of separate fittings required.
Available Copper Pipe Sizes
The M Press Copper Female Tee range covers:
- 15mm
- 22mm
- 28mm
- 35mm
- 42mm
- 54mm
However, the female thread size can vary between fittings. Therefore, always check both the copper connection and threaded branch before ordering.
In addition, confirm that the threaded outlet matches the adjoining male component.
Technical Specification
- Product: M Press Copper Female Tee
- Product Type: Female Threaded Tee
- Configuration: M Press x M Press x Female Thread
- Copper Pipe Sizes: 15mm to 54mm
- Branch Angle: 90°
- Press Profile: M Profile
- Pipe Compatibility: Compatible Copper Tube
- Thread: Female
- Application: Water, Plumbing and Compatible Heating Systems
- Jointing Method: Mechanical Press and Threaded Connection
- Press Connections: Two
- Threaded Connections: One
- Soldering Required: No
- Flux Required: No
- Open Flame Required at Press Joints: No
- Press Tool Required: Yes
- Press Jaw Required: Correct Size M Profile Jaw
Importantly, always confirm the exact thread specification and system compatibility before installation.
What Is an M Press Copper Female Tee?
An M Press Copper Female Tee is a three-way fitting for compatible copper pipework.
Firstly, the two straight sockets accept copper tube. Next, M profile pressing equipment creates the mechanical connections.
Meanwhile, the 90° branch provides an internal female thread. Therefore, the main copper pipe can continue while a threaded component connects from the branch.
Consequently, the fitting provides both a pipe branch and threaded transition within one component.
How Does the Female Thread Work?
The branch contains an internal female thread. Therefore, it accepts a compatible male threaded component.
For example, suitable connections may include:
- Valves
- Gauges
- Drain points
- Controls
- Heating components
- Water equipment
- Threaded adaptors
- Plant room equipment
However, threaded connections can vary. Consequently, always confirm the exact thread specification before installation.
Female Tee vs Equal Tee
Both fittings create a 90° branch. However, their branch connections differ.
An M Press Copper Equal Tee has three press sockets. Therefore, compatible copper tube connects to all three openings.
In contrast, an M Press Copper Female Tee has two press sockets and one female threaded branch.
Consequently, choose the Female Tee when a compatible male threaded component needs to connect directly from the main pipe run.
Female Tee vs Female Coupler
A Female Coupler creates a straight transition between copper pipe and a male threaded component.
However, the Female Tee creates the threaded connection as a 90° branch. Meanwhile, the main copper pipe continues through the other two connections.
Therefore, choose the coupler for an inline threaded transition. Alternatively, use the Female Tee when you need a threaded branch.
Why Use a Female Threaded Tee?
Without a combined fitting, an installation may require several separate components.
For example, an installer could need a standard tee, short copper pipe section and separate female adaptor.
However, the M Press Female Tee combines these functions within one fitting.
Therefore, it can help reduce:
- Separate fittings
- Additional pipe sections
- Extra press connections
- Installation time
- Overall connection length
As a result, installers can create compact and professional pipework.
Ideal for Valve Connections
Many plumbing and heating valves use threaded connections. Therefore, the Female Tee can provide a convenient branch for compatible male threaded valves.
For example, suitable applications may include:
- Drain valves
- Service valves
- Control valves
- Heating valves
- Other compatible threaded components
Furthermore, the two press sockets allow the main copper pipe to continue through the fitting.
Ideal for Gauges and Controls
Water and heating systems often require gauges, controls or service points.
Therefore, the threaded branch can provide a useful connection from the main copper pipe.
For example, it may suit compatible:
- Pressure gauges
- Temperature equipment
- Control devices
- Service points
- Drain points
However, always confirm the thread and application requirements first. In addition, position the component where future access remains practical.
Ideal for Plant Rooms
Plant rooms often combine copper distribution pipework with threaded components.
Therefore, Female Tees can provide useful branch connections around compatible:
- Pumps
- Manifolds
- Cylinders
- Valves
- Heating equipment
- Water equipment
- Control assemblies
Furthermore, the range covers copper sizes from 15mm to 54mm. Consequently, it provides options for different pipework requirements.
Suitable for Domestic Plumbing
Smaller Female Tees can suit many domestic plumbing applications.
For example, installers can create threaded branches within:
- Hot water pipework
- Cold water pipework
- Heating systems
- Utility rooms
- Cylinder installations
- Equipment connections
- Refurbishment projects
Furthermore, the press connections create the copper joints mechanically. Therefore, traditional soldering is not required at those connections.
Suitable for Commercial Installations
The larger copper sizes can suit compatible commercial and mechanical installations.
For example, potential applications include:
- Hotels
- Apartment developments
- Offices
- Schools
- Retail properties
- Public buildings
- Plant rooms
- Mechanical services
Furthermore, larger pipework often serves several pieces of equipment. Consequently, threaded branch connections can provide a useful transition where the system design requires them.
No Soldering Required
Both copper connections use M Press technology.
Therefore, installers do not need solder, flux or a blowtorch at the press joints.
Furthermore, mechanical pressing removes the need to heat the copper connection. Consequently, this can simplify work near finished surfaces and other areas where hot works are undesirable.
As a result, M Press provides a practical alternative to traditional soldered copper connections.
Reduced Hot Works
Copper pipework can run close to walls, insulation and existing equipment.
Therefore, avoiding a blowtorch at the press connections can provide a practical installation advantage.
Furthermore, reduced hot works can prove useful during refurbishment and maintenance projects.
However, installers should still follow all relevant site procedures and installation requirements.
How to Install an M Press Copper Female Tee
Firstly, select the correct copper pipe size and female thread.
Next, cut both copper pipes squarely with a suitable pipe cutter.
Then, remove internal and external burrs from each pipe.
Afterwards, inspect the copper tube and fitting for damage or contamination.
Mark the required insertion depths where specified. Next, push both pipes fully into the press sockets.
Check the insertion marks and tee orientation before pressing.
Then, position the correct M profile press jaw around the first connection. Complete the full pressing cycle.
Next, repeat the process on the second press socket.
Finally, connect the compatible male threaded component using the appropriate sealing method where required.
Prepare Both Copper Pipes
Correct pipe preparation remains important for both press connections.
Firstly, make clean, square cuts. Next, remove internal and external burrs.
Furthermore, inspect each pipe before insertion.
Correct preparation helps protect the fitting’s internal sealing components. In addition, smooth pipe ends can enter the sockets more easily.
Therefore, complete the preparation process on both pipes before pressing.
Mark Both Insertion Depths
Both copper pipes need correct insertion into the fitting.
Therefore, mark the required insertion depth on each pipe where specified.
Furthermore, these marks provide a quick visual reference before pressing. They can also reveal movement while positioning the tee or tool.
Consequently, checking both marks before pressing provides a useful installation check.
Press Both Connections
The Female Tee contains two M Press sockets. Therefore, installers must complete both press connections.
A simple sequence can help:
- Prepare both copper pipes.
- Mark both insertion depths.
- Insert both pipes fully.
- Check the branch orientation.
- Press the first socket.
- Press the second socket.
- Complete the threaded connection.
- Inspect the finished installation.
As a result, a systematic approach can reduce the risk of overlooking a press joint.
Use the Correct M Profile Jaw
Each press socket requires compatible M profile pressing equipment.
Therefore, always match the jaw to the fitting and copper pipe size.
Before pressing, check:
- Copper pipe size
- Fitting size
- M press profile
- Correct jaw size
- Press tool compatibility
- Jaw condition
- Pipe insertion depth
- Tee orientation
- Jaw position
Importantly, never substitute another press profile simply because it appears to fit.
Creating the Female Threaded Connection
The threaded branch also requires careful assembly.
Firstly, confirm that the male component matches the female thread.
Next, apply a suitable thread-sealing method where required. Then, carefully engage the threads to avoid cross-threading.
Furthermore, support the tee while tightening.
Consequently, unnecessary twisting force is less likely to transfer into the completed press connections.
Avoid Over-Tightening
The threaded connection needs secure assembly. However, excessive force can damage the fitting or adjoining component.
Therefore, use suitable tools and follow the relevant installation requirements.
Furthermore, support the tee during tightening. As a result, the surrounding copper pipework experiences less unnecessary mechanical stress.
Check the Tee Orientation Before Pressing
Once pressed, the branch position becomes fixed.
Therefore, check its orientation carefully before completing either press connection.
Consider:
- Threaded branch direction
- Connected component position
- Press jaw access
- Tool clearance
- Nearby pipework
- Walls and surfaces
- Future servicing access
Consequently, careful positioning can prevent unnecessary rework later.
Plan for Press Tool Access
Pressing equipment requires sufficient clearance around both sockets.
Therefore, check access before finalising the pipe layout.
Consider jaw clearance, nearby equipment and surrounding pipework. Furthermore, allow enough room to position the press tool correctly.
Consequently, planning becomes especially important when working in restricted plant rooms or service areas.
Choosing the Correct Female Tee
Two connection dimensions need consideration.
Firstly, select the correct copper pipe size.
Secondly, confirm the required female thread size.
Therefore, never select the fitting from the copper dimension alone.
Furthermore, check the thread on the adjoining component. As a result, you can avoid unnecessary adaptors or incompatible connections.
Female Tees for Heating Systems
Heating installations frequently require threaded branches from copper distribution pipework.
Therefore, Female Tees can provide useful connection points within compatible water-based heating systems.
For example, potential locations include:
- Heating distribution
- Pump arrangements
- Cylinder pipework
- Plant rooms
- Control assemblies
- Valve connections
- Service points
Furthermore, M Press technology provides a consistent mechanical jointing method across compatible copper pipework.
A Complete M Press Copper System
The M Press Copper Female Tee forms part of a wider copper press fitting range.
Therefore, installers can combine compatible M Press products for different pipework requirements.
For example, the range can provide:
- Straight connections
- Equal branches
- Female threaded branches
- Male threaded transitions
- Female threaded transitions
- 45° direction changes
- 90° direction changes
- Isolation points
- Pipe size reductions
- Pipework crossovers
- Fixed wall outlets
- Pipe terminations
Consequently, installers can maintain a consistent M profile jointing method throughout compatible copper pipework.
Why Buy From Kudos Trading?
Kudos Trading supplies professional plumbing, heating and underfloor heating products throughout the UK.
Furthermore, our growing M Press range includes copper fittings, valves and installation tools for professional installers.
We have more than 25 years of relevant industry experience. Therefore, customers can access practical support when choosing products for their installation.
Choose Kudos Trading for:
- Extensive M Press copper fitting range
- Domestic and commercial fitting sizes
- Competitive UK prices
- Fast nationwide delivery
- Practical technical support
- Friendly customer service
- More than 25 years of industry experience
- Support before and after your purchase
Frequently Asked Questions
What is an M Press Copper Female Tee?
It is a three-way fitting with two M profile press sockets and one female threaded branch.
What is it used for?
It creates a threaded branch from a continuing copper pipe run.
What copper pipe sizes are available?
The range covers 15mm, 22mm, 28mm, 35mm, 42mm and 54mm copper connections.
Does every size have the same female thread?
No. Therefore, always check both the copper connection and thread dimensions before ordering.
What does female thread mean?
The thread sits internally within the branch. Consequently, it accepts a compatible male threaded component.
What is the difference between a Female Tee and Equal Tee?
An Equal Tee has three press connections. In contrast, a Female Tee has two press connections and one female threaded branch.
What is the difference between a Female Tee and Female Coupler?
A Female Coupler creates a straight threaded transition. However, a Female Tee creates a 90° threaded branch.
Can I connect a valve to the branch?
Yes, provided the valve has a compatible male threaded connection.
Can I connect a gauge to the branch?
Potentially, yes. However, always confirm the exact thread and application requirements first.
What press profile does it use?
The copper connections require compatible M profile pressing equipment.
How many press connections does it have?
It has two press sockets. Therefore, installers must complete two pressing cycles.
Does the fitting require soldering?
No. Instead, mechanical pressing creates both copper connections.
Do I need a blowtorch?
No. Therefore, the press connections help reduce traditional hot works.
Is it suitable for water pipework?
Yes, where the exact fitting specification suits the intended water application.
Can it be used on heating systems?
Yes, where the exact fitting specification permits the intended water-based heating application.
Do I need to deburr both pipes?
Yes. Furthermore, correct deburring helps protect the internal sealing components.
Should I mark both insertion depths?
Yes, where specified. Consequently, you gain a useful visual check before pressing.
Can I use a U profile jaw?
No. Instead, use compatible M profile pressing equipment.
Should I support the tee when tightening the threaded connection?
Yes. This helps prevent unnecessary twisting forces from reaching the completed press joints.
Related Products
- M Press Copper Equal Tee
- M Press Copper Male Coupler
- M Press Copper Female Coupler
- M Press Copper 90° Female Elbow
- M Press Copper 90° Male Elbow
- M Press Copper Wall Plate Elbow
- M Press Copper Straight Coupler
- M Press Copper Reducing Coupler
- M Press Copper Fitting Reducer
- M Press Copper Full Bore Lever Ball Valve
- M Press Lever Ball Valve Press Fit to BSP
- M Press Copper 90° Elbow
- M Press Copper 45° Elbow
- M Press Copper Full Crossover
- M Press Copper Part Crossover
- M Press Copper End Stop
- Manual M Press Tool
- M Profile Press Jaws
- Copper Pipe Cutters
- Pipe Reamers & Deburring Tools
Next Working Day Delivery: Yes, we hold all our products in stock at our 7000 sq ft Nottingham warehouse and at our 3000 sq ft warehouse in Market Harborough and use DPD for a tracked next-day delivery.
Collection Available: You can always collect from our Norttinagham location and help yourself to a free tea and coffee
