The Heatmiser UH8-RF wireless wiring centre is a powerful and flexible solution for managing multi-zone heating systems. Designed specifically for underfloor heating, it allows you to control up to eight zones efficiently using wireless thermostats. As a result, it simplifies installation while delivering precise temperature control throughout your property.
Unlike traditional wired systems, the Heatmiser UH8-RF wireless wiring centre removes the need for extensive cabling between thermostats and the wiring centre. Therefore, it is an excellent choice for both new installations and retrofit projects where running cables may be difficult or costly.

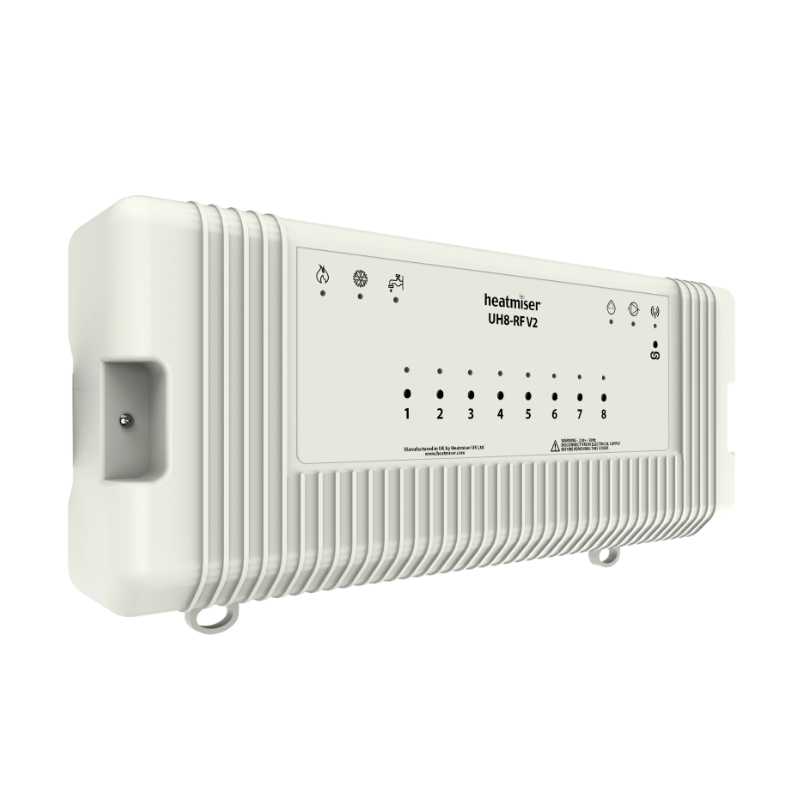

Overview of the Heatmiser UH8-RF Wiring Centre

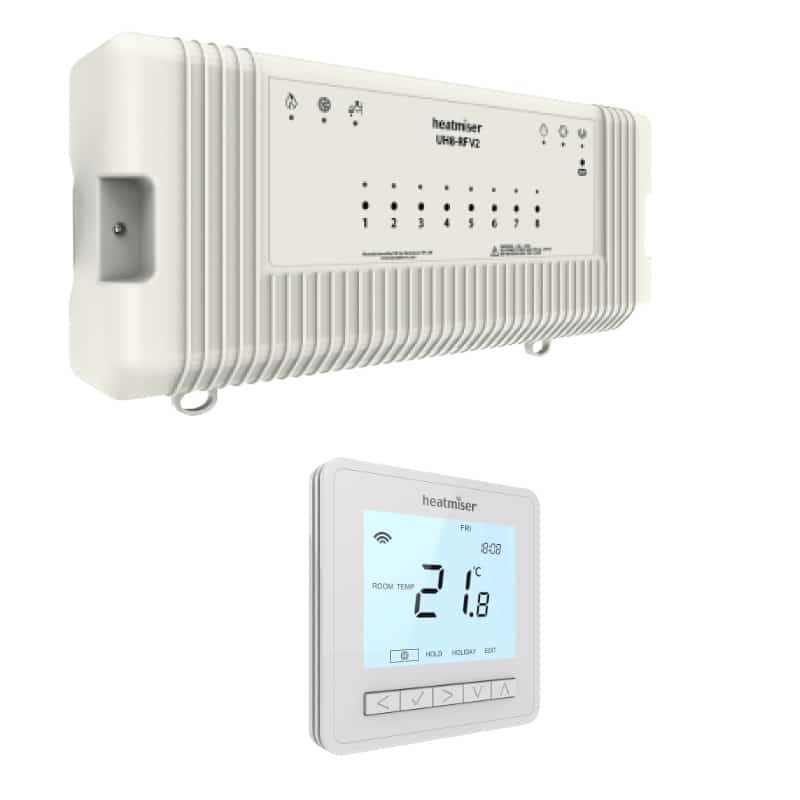

The Heatmiser UH8-RF is engineered to act as the central hub of your heating system. It connects wirelessly to compatible thermostats such as the Slimline-RF v3 and neoAir v3. Once connected, it manages communication between thermostats, actuators, the boiler, and the pump.
In addition, the unit is typically installed near the underfloor heating manifold, making it easy to organise and control all zones from one location. Because of this, installers benefit from a cleaner and more efficient setup.
Key Features of the UH8-RF Wireless Wiring Centre
8 Zone Underfloor Heating Control
The Heatmiser UH8-RF wireless wiring centre supports up to eight individual heating zones. Each zone can control multiple actuators, which ensures even heat distribution across different areas of your home.
Moreover, this zoning capability allows users to heat only the rooms they need. Consequently, it can help reduce energy consumption and improve overall comfort.
Wireless Thermostat Compatibility
This wiring centre is fully compatible with Heatmiser RF thermostats. As a result, you can position thermostats anywhere within range without worrying about wiring constraints.
Furthermore, wireless communication ensures reliable performance while maintaining a tidy installation. This is particularly useful in modern homes where aesthetics matter.
Boiler, Pump and Hot Water Integration
The Heatmiser UH8-RF wireless wiring centre includes outputs for boiler control, pump activation, and hot water systems. When any zone calls for heat, the system automatically activates the required components.
In addition, the unit features a volt-free boiler connection. Therefore, it works with a wide range of boilers, making it a versatile choice for different heating setups.
How the Heatmiser UH8-RF Works
The system operates by receiving signals from wireless thermostats placed around the property. When a thermostat detects that the temperature has dropped below the set level, it sends a signal to the wiring centre.
The Heatmiser UH8-RF wireless wiring centre then opens the corresponding actuator valves for that zone. At the same time, it activates the boiler and pump if needed. As a result, heat is delivered precisely where it is required.
Additionally, the system can send signals via RF to an RF Switch v2. This feature allows for a fully wireless boiler connection, which further reduces installation complexity.
Benefits of Choosing a Wireless Wiring Centre
Simplified Installation
One of the main advantages of the Heatmiser UH8-RF wireless wiring centre is its ease of installation. Since it uses wireless communication, installers can avoid running cables through walls and floors.
Therefore, installation time is reduced, and disruption to the property is minimised.
Flexible Heating Control
Wireless connectivity provides greater flexibility in thermostat placement. You can install thermostats in optimal locations without being limited by wiring routes.
As a result, temperature readings are more accurate, and comfort levels improve.
Ideal for Retrofit Projects
For older properties or renovation projects, running new cables can be challenging. However, the Heatmiser UH8-RF wireless wiring centre offers a practical alternative.
Because of this, it is a popular choice for upgrading existing heating systems without major structural work.
Technical Specifications
- Supports up to 8 heating zones
- Compatible with Slimline-RF v3 and neoAir v3 thermostats
- 230V actuator outputs
- Supports up to 6 actuators per zone
- Includes pump, boiler, and hot water control
- Features volt-free boiler connection
- Optional external aerial for improved signal
- Dimensions: 384 x 148 x 60 mm
